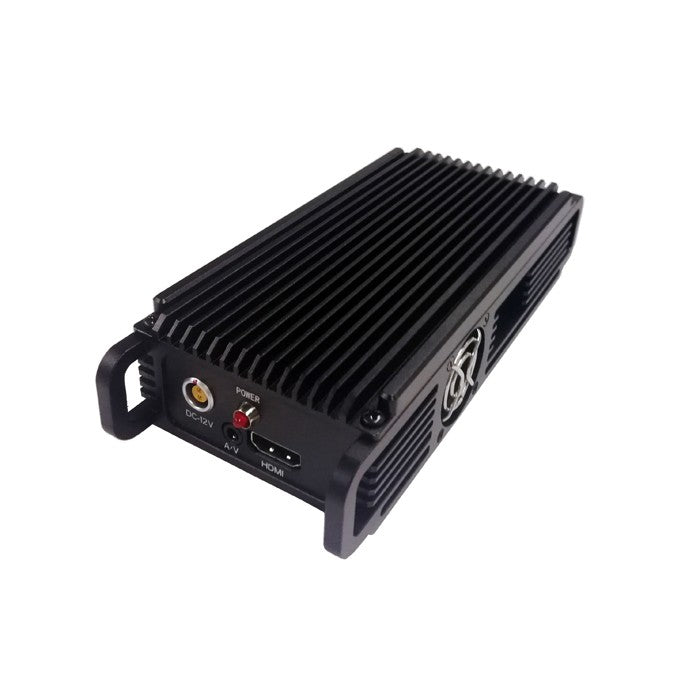

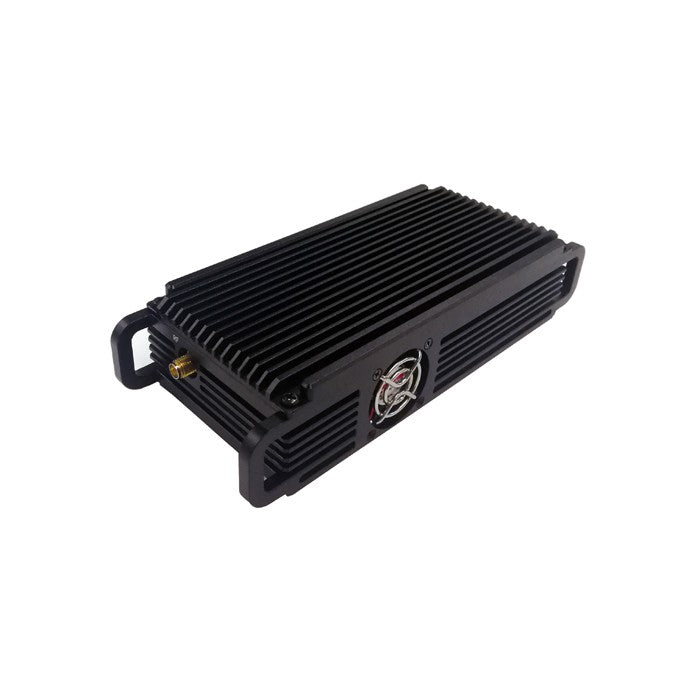

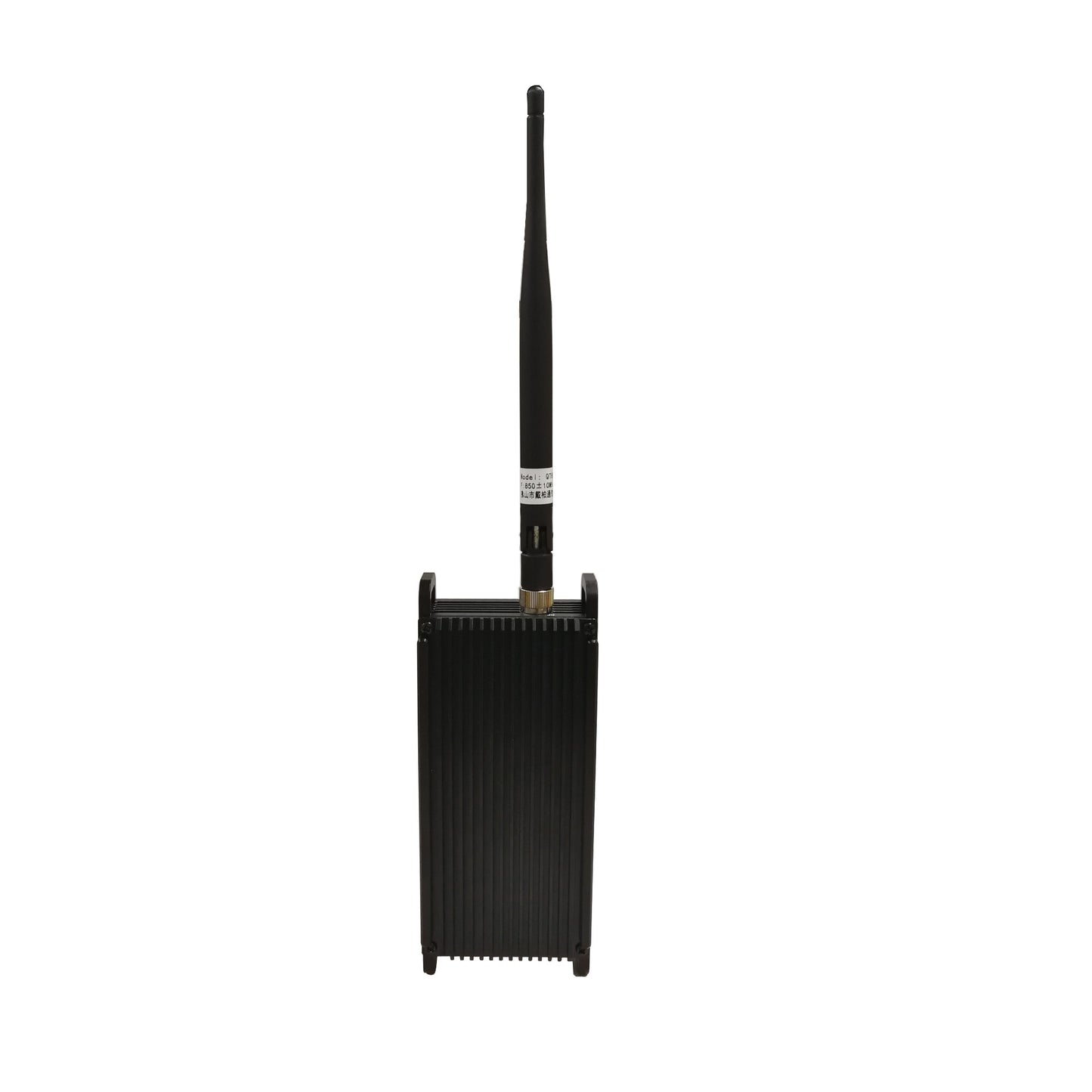

WVC-HD Digital COFDM Transmitter

WVC-HD Digital COFDM Transmitter

SKU: WVC-HD Digital COFDM TX
Regular price $10,000.00 USD
Regular price Sale price $10,000.00 USD
Sale Sold out
Shipping calculated at checkout.

WVC-HD Digital COFDM Transmitter provides Full 1080 HD wireless video transmission for mobile applications requiring low latency and rock-solid results

View full details


WVC-HD Digital COFDM Transmitter



Please Contact us for PRICING since these are ALL Custom Made to Order


The WVC-HD Digital COFDM Transmitter provides Full 1080 HD low latency video for a variety of applications.  Industrial, Military, Police, Homeland Security, UGV, Body worn, mobile vehicle and more.  Featuring HDMI & CVBS inputs with COFDM transmission in a compact, robust chassis.  Reliable HD video transmission for the most challenging projects.


    • HDMI and CVBS dual video inputs

    • 1080p FHD up to 60fps

    • Transmission range up to 1-1.5km NLOS (depending on obstructions)

    • Licensed and ISM frequencies (900MHz-2.7GHz)

    • 60-110ms low system latency

    • Quick re-link if signal is lost and then regained

    • Low operating temperature

    • H.264/H.265 encoding

    • AES256 encryption

    • Rugged aluminum alloy housing with Dual Cooling Fans

  •       Compact size

Transmission Characteristics
Modulation COFDM
Modulation Type QPSK(4QAM), 16QAM, 64QAM
Frequency 900MHz-2.7GHz (Default 902-928MHz)
Output Power 30dBm (33dBm Optional)
RF Bandwidth 2/4/6/8MHz
FEC 1/2, 2/3, 3/4, 7/8
Guard Interval 1/4, 1/8, 1/16, 1/32
Data Characteristics
Video Input HDMI: 1080p/1080i/720p/720i…(self-adaption) AV: 720x480/60i (NTSC), 720x576/50i (PAL) (self-adaption)
Encoding H.264 / H.265
RF Interface SMA Female connector
Control Method Using the USB programmer
Encryption AES256 (User defined password)
Electrical Characteristics
Working Voltage DC12V (8-16V)
Working Current 0.7A (@12V)
Power Consumption 8.4W
Physical Characteristics
Weight 465g  (17oz.)
Dimensions 175 x 71 x 38mm  (6.9" X 2.75" X 1.6")
Working Temp. -20℃ ~ +70℃
