WVC-HD Digital COFDM IP MESH

WVC-HD Digital COFDM IP MESH

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

WVC-HD Digital COFDM IP MESH node (requires a minimum of 2 nodes) - Available for Long Range Line-of-Sight and Urban Non-Line-of-Sight appl

View full details

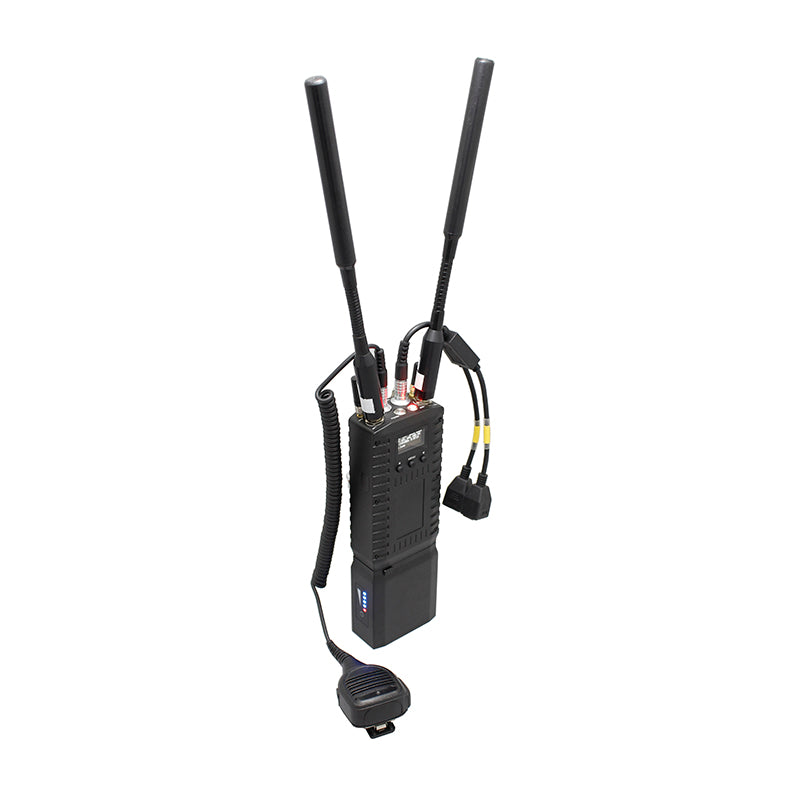

WVC-HD Digital COFDM IP MESH


The WVC-HD Digital COFDM IP MESH node, it can transmit audio, video and IP data in real time, and its multi-hop relay can increase the wireless transmission distance. Its self-organizing network automatically selects the path, and the network mode is flexible. Using COFDM maintains a very suitable signal  for mobile communication under the most challenging environments.   Applications are endless for Industrial, Military, Police, Fire, Homeland Security, Mobile Vehicles, UGV  and others for real-time, relieable rock-solid Full 1080 HD video/audio or data.

    • Infrastructure-less, self configuring and self healing

    • Frequency 1400MHz-1480MHz (900MHz-4GHz customizable)

    • Data rate up to 80Mbps

    • Range up to 1-2km NLOS (depending obstructions and number of nodes used)

    • Supports up to 9 hops and no less than 50 nodes

    • Full transparent IP data transmission

    • Supports two-way intercom

    • HDMI input as optional

    • Supports 2.4G/5.8G WIFI connection

    • Supports AES256 encryption

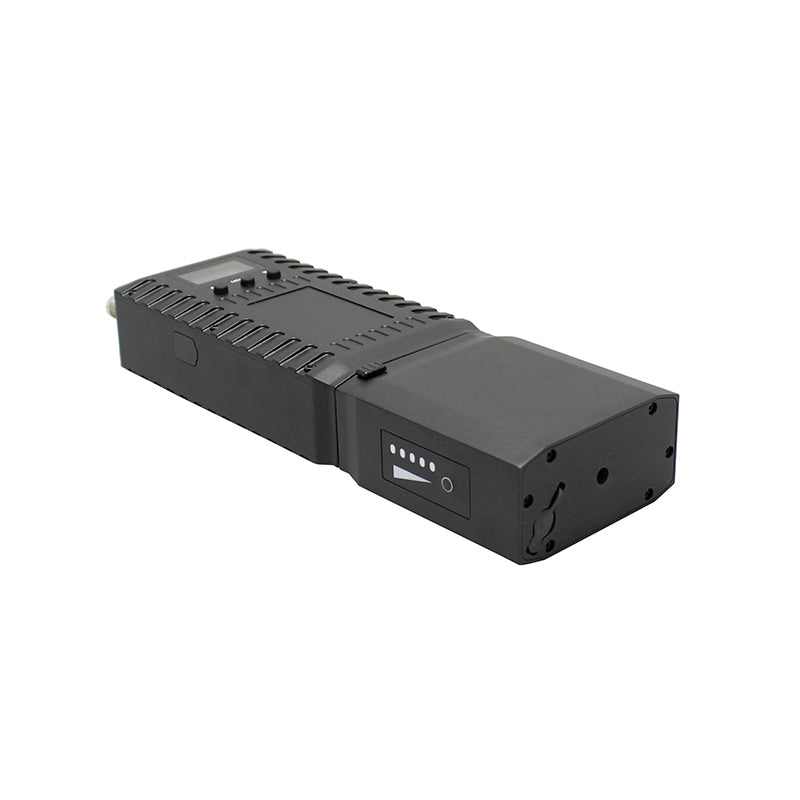

    • Removeable Battery Pack for up to 5 hours of continuous use

    • Rugged IP65 housing

  • Low system latency

Frequency 900MHz-4GHz customizable
Default Frequencies 1400MHz-1480MHz
Channel Bandwidth 2M/5M/10M/20MHz/40MHz
Output Power 36dBm (4W MIMO 2x2)
WIFI 2.4G/5.8G WIFI (2x100mw)
Modulation Type DSSS/CCK BPSK/QPSK OFDM BPSK/QPSK/16-QAM/64-QAM
Digital Sensitivity 96dBm@5MHz BPSK
Transmission Rate Up to 80Mbps
Network Capability 9 hops and no less than 50 nodes
Data Characteristics

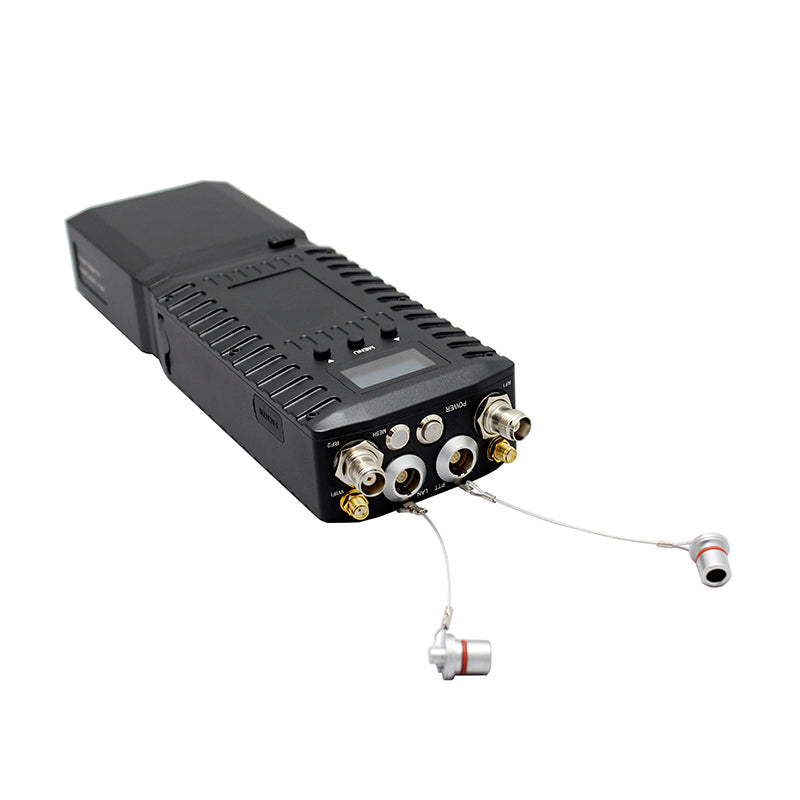

RF Interface TNC F*2, SMA F*2
LAN Interface 9-Pin Lemo connector
Intercom Interface 7-Pin Lemo connector
HDMI Interface(Optional) Micro HDMI x1
Signal Indicator 1x LED dual color (Green/Red)
Encryption 256-bit AES (user-defined password)
Electrical Characteristics
Working Voltage DC 16.8V
Power Consumption ≤12W
Battery 18.5V/3.5Ah
Physical Characteristics
Weight ≤1.2kg (w/ battery) (2.7lbs)
Dimensions 265 x 90 x 40mm (with battery) (10.6" x 3.6" x 1.7") 170 x 90 x 40mm (w/o battery) (6.75" x 3.6" x 1.7"
IP Rating IP65/IP66
Storage Temp. -45℃~85℃
Working Temp. -30℃~65℃
Working Humidity 5%-95% (Non-Condensing)
