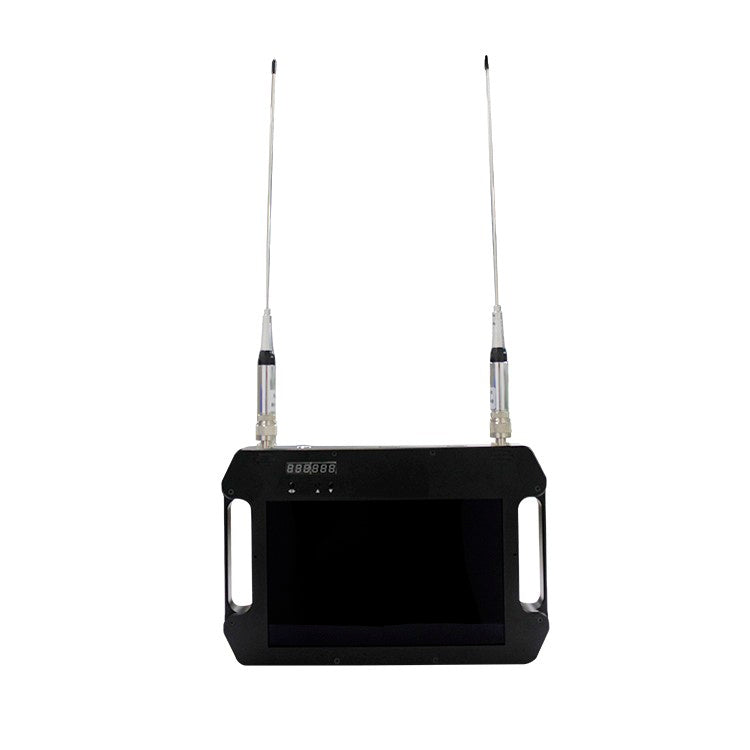

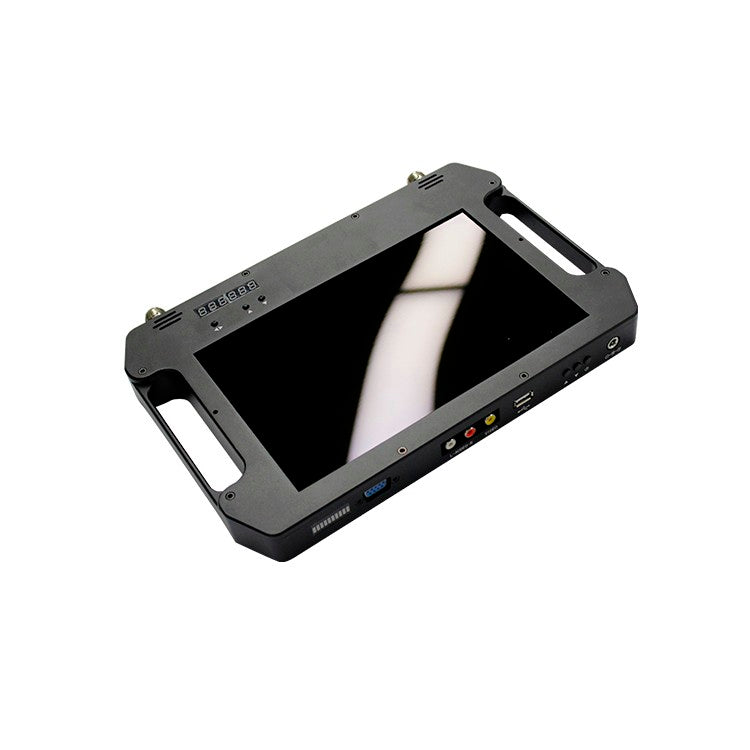

WVC-HD Digital COFDM Hand-Held Receiver



Please Contact us for PRICING since these are ALL Custom Made to Order

The WVC-HD Digital COFDM Hand-Held Receiver is compact, battery powered, light weight and easy to hold right and left hand grip handles.  The 10" LCD Screen and High Gain Antennas are designed for customers who require a discrete and completely portable surveillance solution.  The intelligent design reduces setup time and ensures reliable reception of video, audio and data in NLOS conditions. Further range may achieve by selecting reception mode, booster amplifiers and antenna type. The unit can be combined with a variety of antennas and other RF accessories in order to achieve greater range. It is fully compatible with our COFDM HD transmitters.

• Compact size and light weight

• Easy to hold right and left hand grip handles

• Portable design for easy operation

• 10.1 inch high brightness HD display

• Receiving signal under high-speed and NLOS conditions

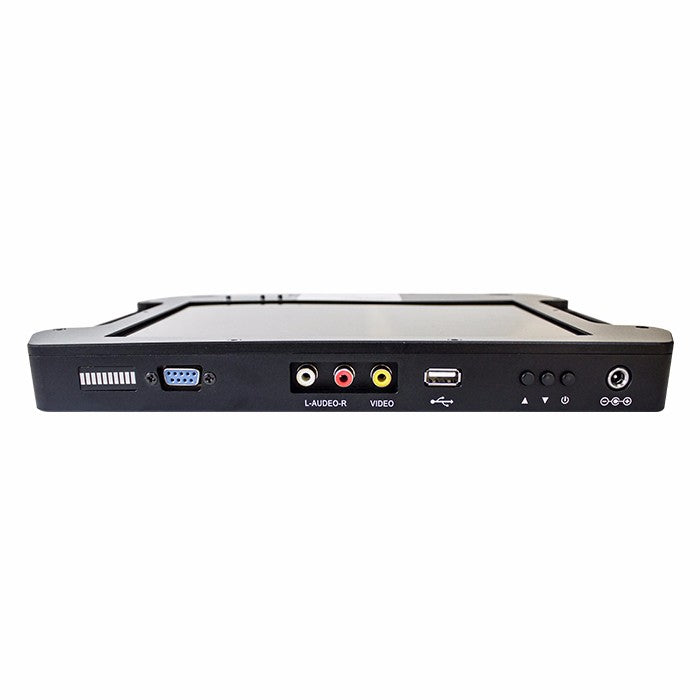

• With AV output for connecting to external large display

• AES256 encryption

• Built-in battery up to 4 hours of continuous use

Modulation	COFDM
Modulation Type	QPSK (4QAM), 16QAM, 64QAM
Working Frequency	Default 902-928MHz (900MHz-2.7GHz customizable, 0.5M per step)
RF Bandwidth	1.25/2.5/6/7/8MHz adjustable
FEC	1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval	1/4, 1/8, 1/16, 1/32
Data Characteristics
Video Output	AV (CVBS)
Video Compression	H.264

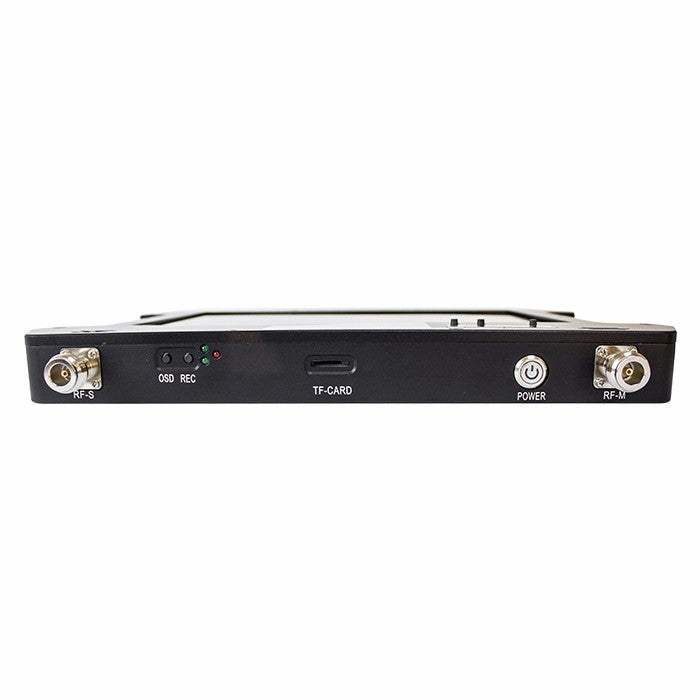

RF Interface	N F head (50Ω, dual channel diversity reception)
Storage Interface	TF card (128G max.), FAT32
Receiving Sensitivity	-106dBm
Parameter Control Method	LED digital display panel
Encryption	256-bit AES
Screen Size	10.1 inch
Electrical Characteristics
Working Voltage	DC12V
Working Current	≤1A (@12V)
Power Consumption	≤12W
Physical Characteristics
Weight	1.5Kg (3.3lbs)
Dimensions	300 x 200 x 30mm   (11.75" X 8" X 11.75"
Operation Temperature	-10℃~+70℃
