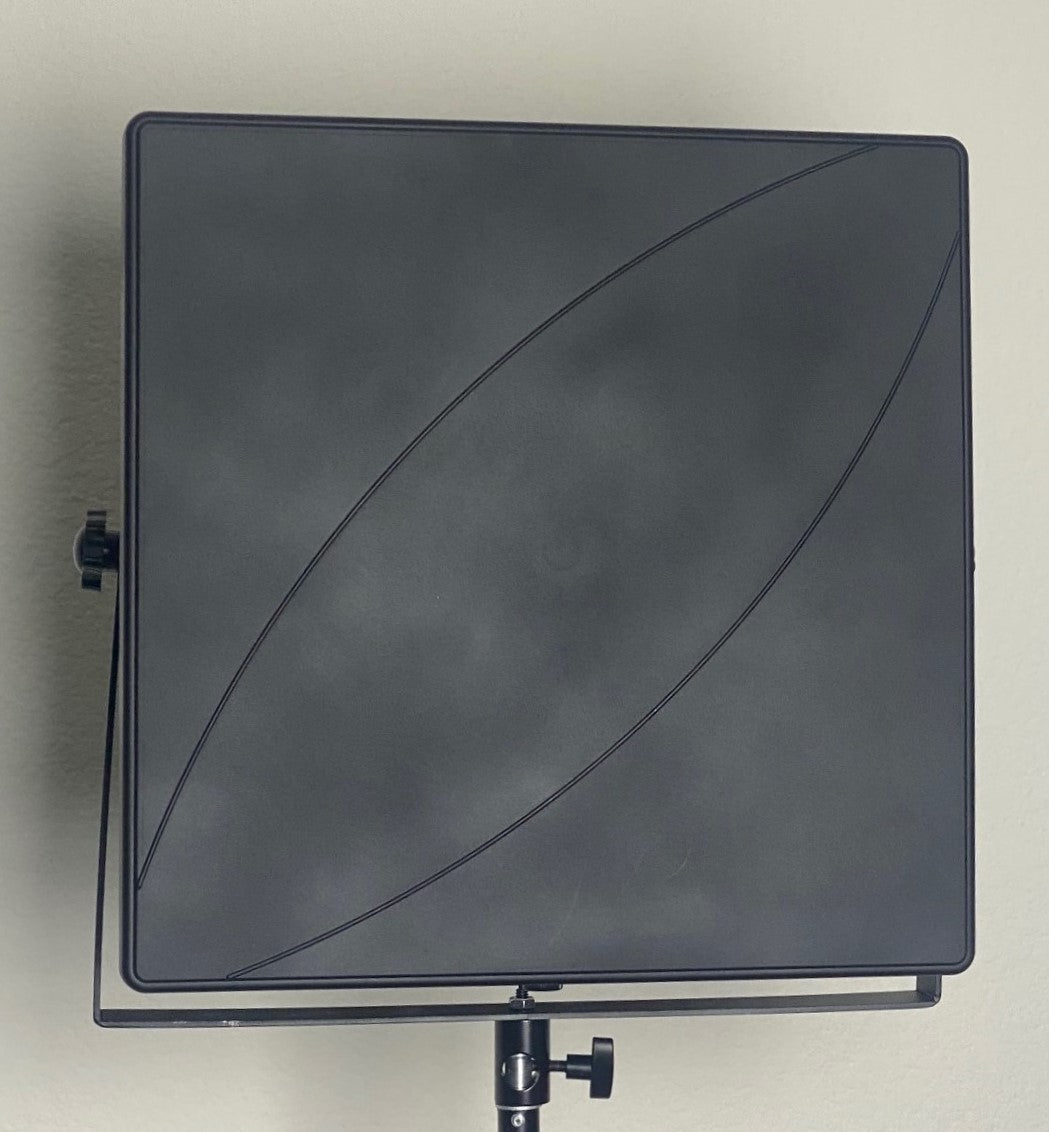

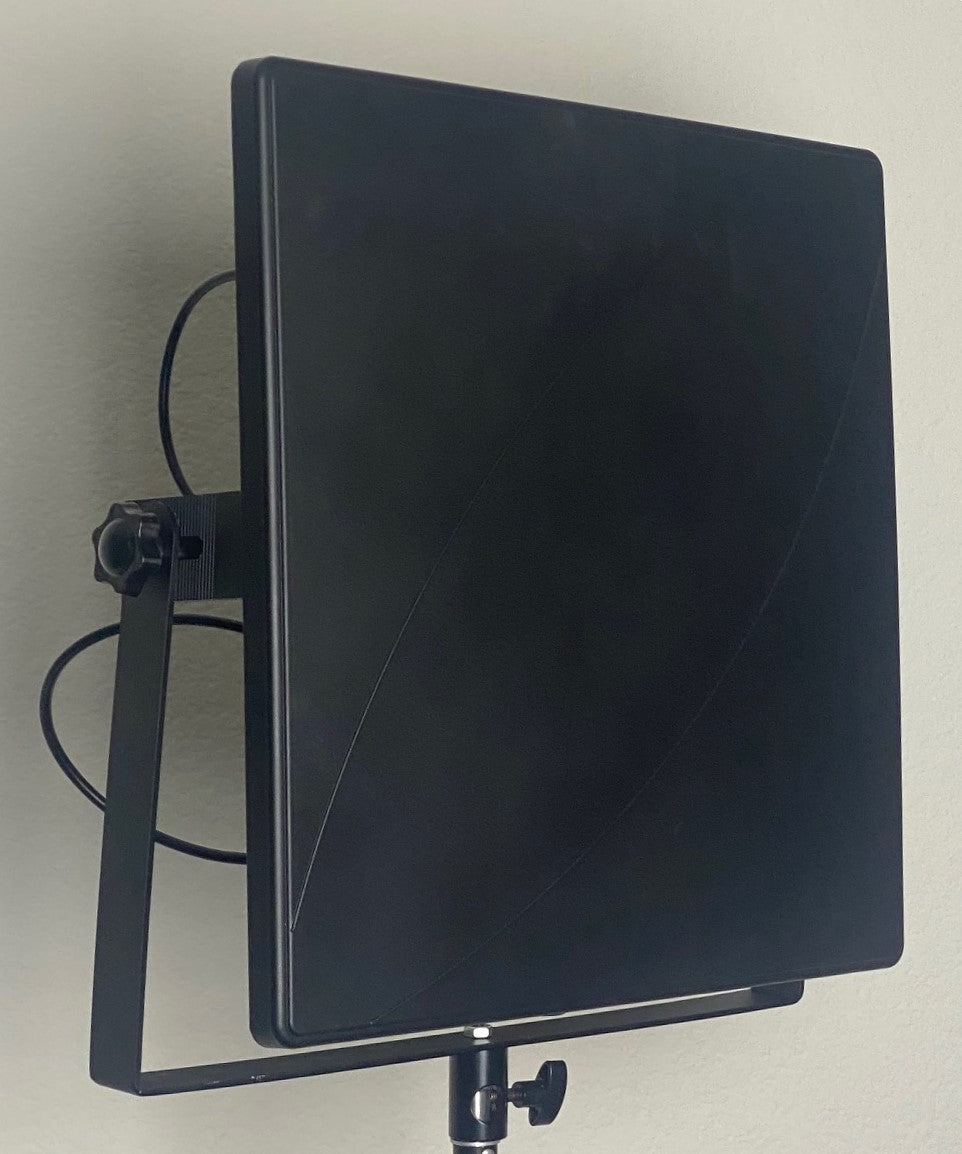

WVC-HD-5Ghz-5-Way High Gain Panel Antenna for use with
WVC-HD-3000 & 2000 systems

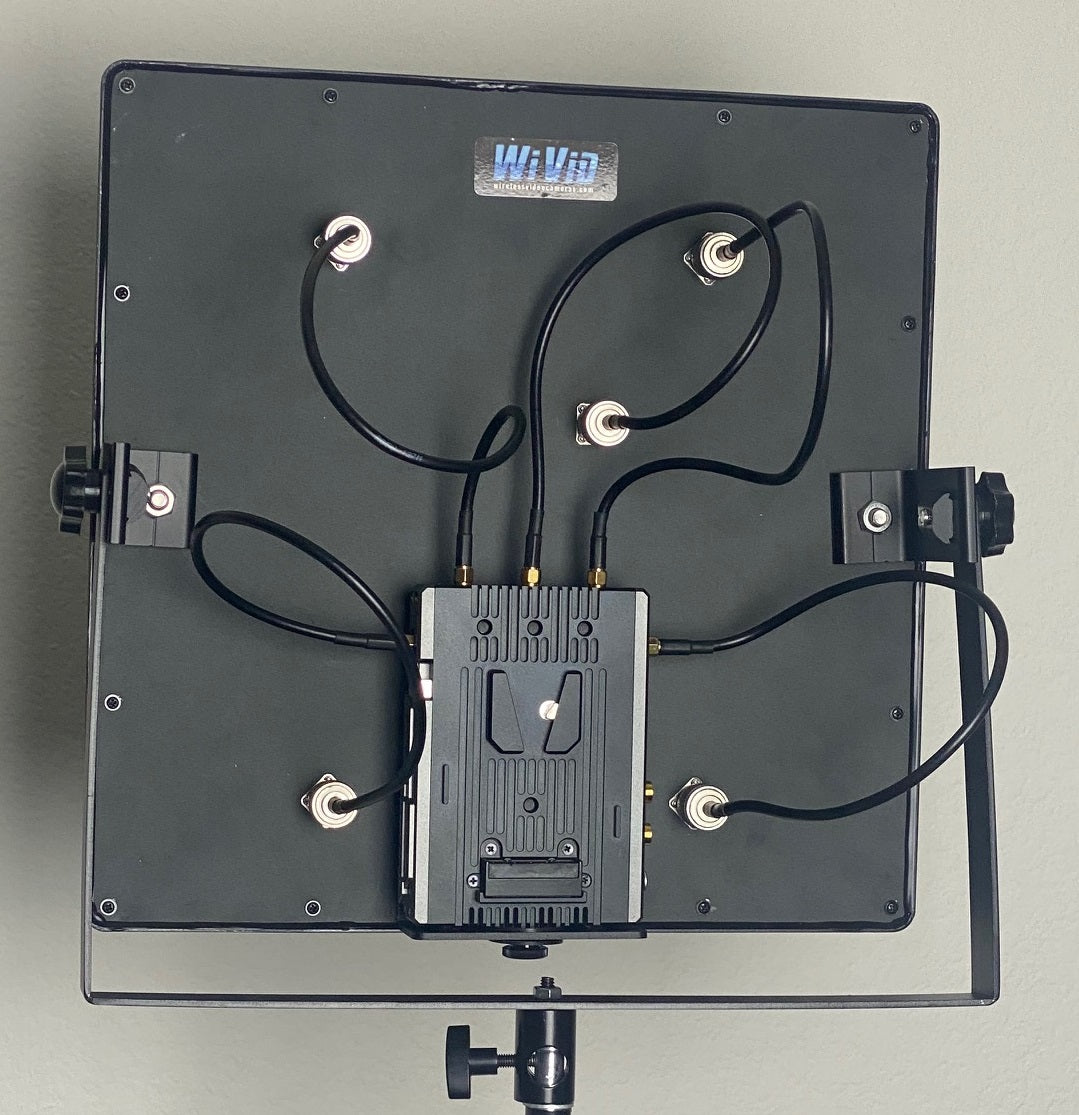

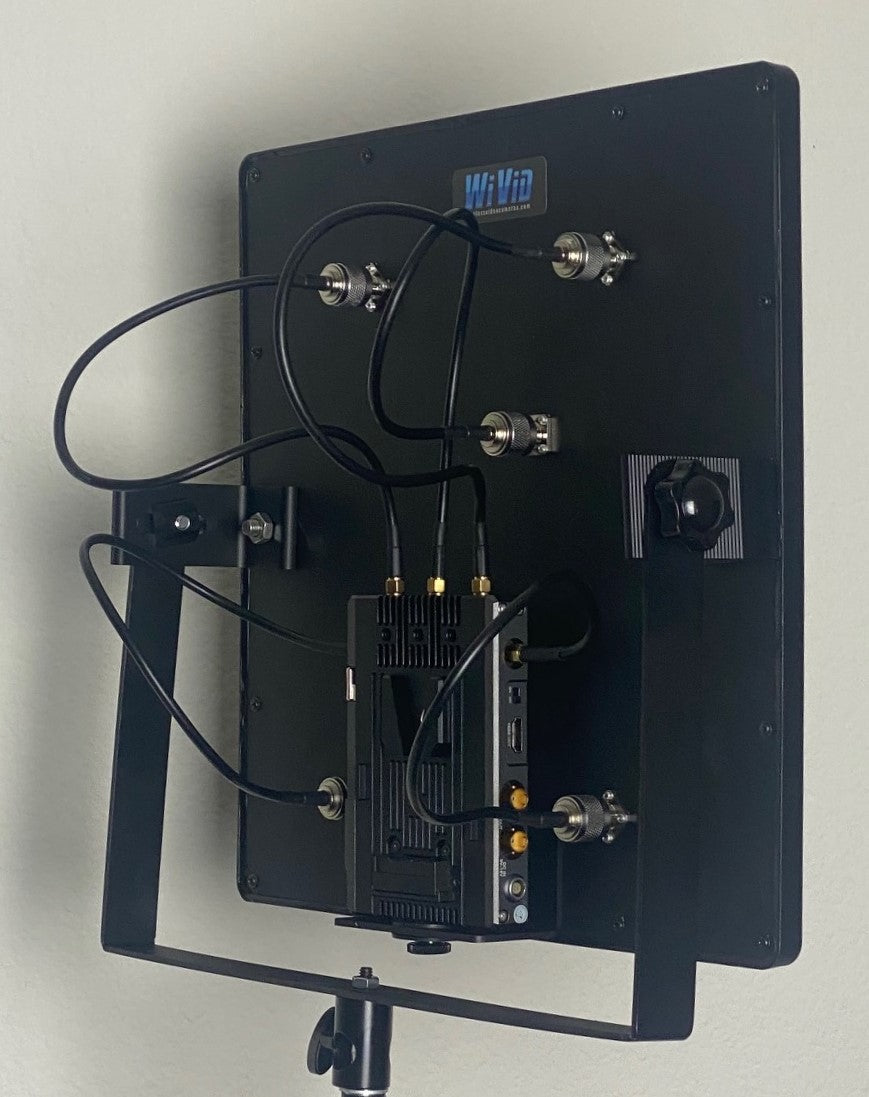

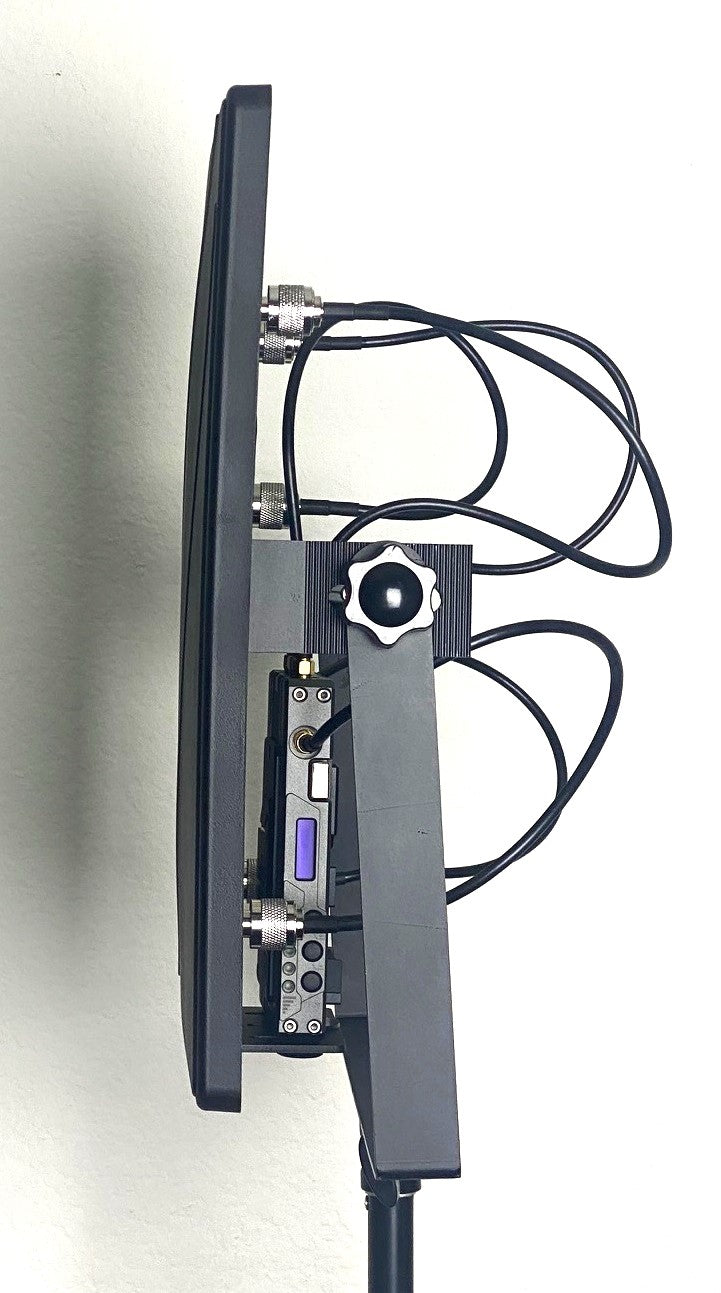

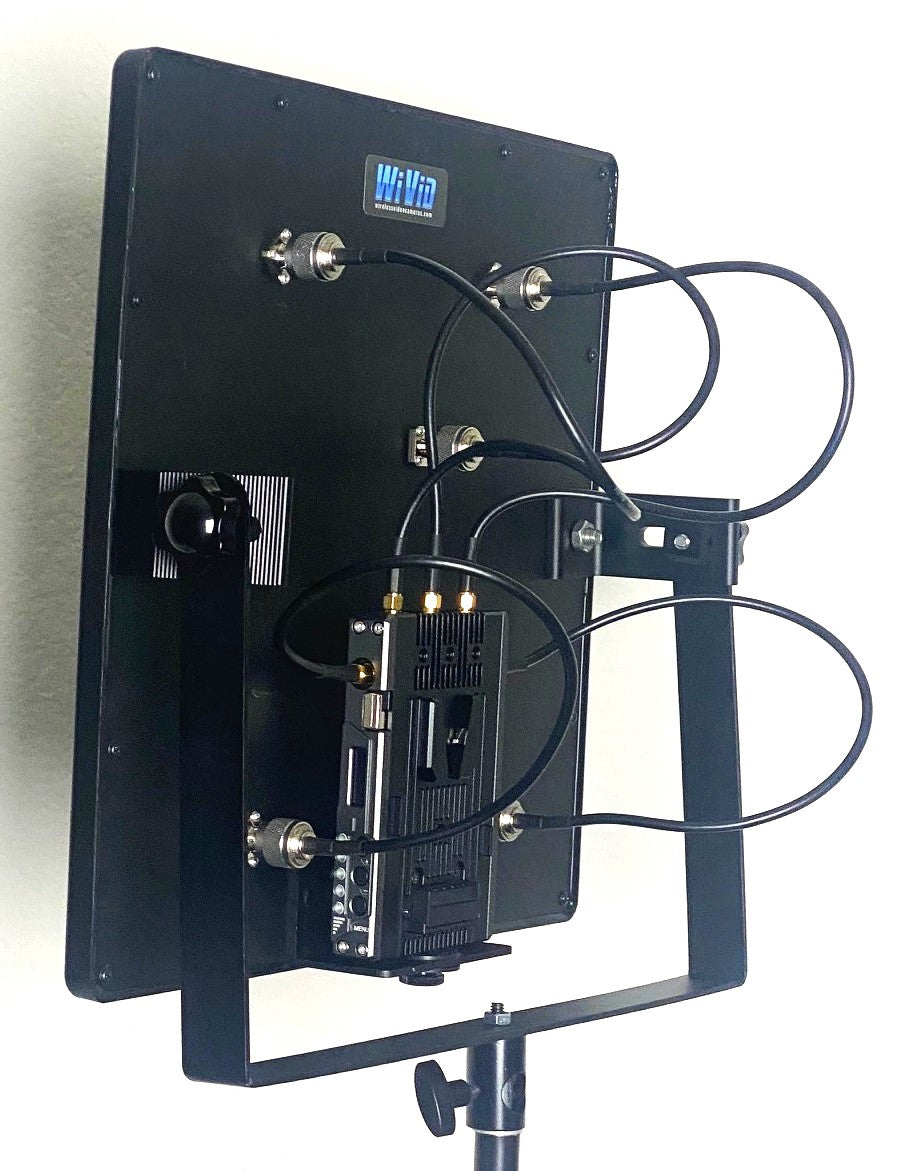

(Note: RECEIVER is NOT INCLUDED,
but it is shown in the product pictures)
INCLUDES:
(1) 5-Way High Gain Panel Antenna with Adjustable "U" Mount Bracket for Lightstand mounting (5) Low Loss N-Type to RP-SMA antenna cables for use with WVC-HD-3000 & 2000 Receiver units, (1) "L" for mounting Receiver with 1/4-20 Thumb screw
- Increases Range and Performance for Point-to-Point applications
- Wide signal beam width for maximum perfromance
- Over 6000ft. Clear-Line-of-Sight Range
- Adjustable for most ground or aerial uses
- Easy setup
With over 30 years of experience providing Wireless Video Solutions worldwide we can assist you with the design of your project by always giving you the most cost effective solution for your project.
Antenna Specifications
Antenna Dimensions | 365.125mm X 365.125mm X 95.25mm (14.375” X 14.375” X 3.75”) (includes “U” Bracket) |
Antenna Connectors | (2) N-Type female |
Antenna Cables | (5) Low Loss N-Type to RP-SMA |
Weight | 1818 grams (4 lbs.) |
Frequency Range | 5.1Ghz to 5.9Ghz |
