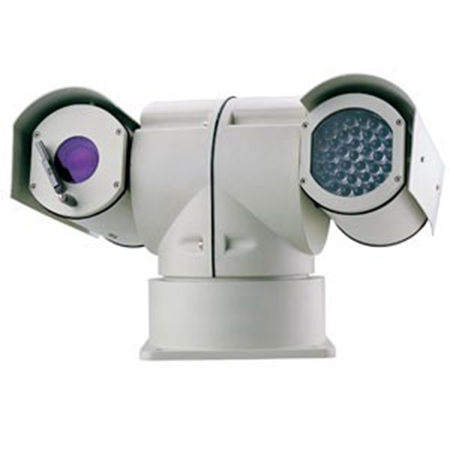

Weatherproof 36X Zoom High Res 540line 300ft IR PTZ Camera

Weatherproof 36X Zoom High Res 540line 300ft IR PTZ Camera

SKU: PTZ-36X-540-IR-300-1
Regular price $2,599.00 USD
Regular price Sale price $2,599.00 USD
Sale Sold out
Shipping calculated at checkout.

36X Zoom High Res 540line Color PTZ Camera - Infrared Night Vision Range of over 300ft. - Weatherproof IP66 Housing - Shock Absorber Mounting Bracket - Lens Wiper - 24VAC or Optional 12VDC

View full details




Weatherproof 36X Zoom High Res 540line 300ft IR PTZ Camera


    • 36X Optical Motorized Zoom and 540TVL High Resolution

    • 360° Continuous Pan Rotation and 180° Tilt Rotation

    • High Power IR LED Illuminator capable of up to 300ft

    • Built-in SONY FCB EX1010 Day/Night Zoom Camera Delivers top tier quality

    • Wide Dynamic Range (WDR) feature overcomes adverse lighting

    • Weatherproof design, w/die-cast aluminum construction, Ingress Protection Grade IP66

    • Rugged, Shockproof, suitable for mobile surveillance mounted directly to vehicles

    • Pan/Tilt/Zoom Supports Custom Patterns, 6 cruising modes with 16 presets each, 128 preset positions total

    • Dual Voltage Power options available : DC12V / AC24V

    • 4 x I/O Alarm Sensor input, 1 x I/O Relay output (Available only on AC24V )

    • Camera Supports Home feature

    • Shock absorber and Wall mount bracket included

    • On-board Wiper / Defogger Function

    • Multi-Protocol Support

PTZ Functions: Picture Elements: Approx., 540K Pixels (NTSC) / Approx., 540K Pixels (PAL) Horizontal High Resolution: NTSC: 540TVL (wide end) / PAL: 540TVL (wide end) Motorized Zoom Lens: 36x Optical F=3.4mm-122.4mm (Wide-Telephoto), F1.6 ~F4.5 Zoom Speed Movement (NTSC): Optical Wide/Optical Tele 4.0sec, Optical Wide/Digital Tele 6.0sec, Digital Wide/Digital Tele 2.1sec. Zoom Speed Movement (PAL): Optical Wide/Optical Tele 4.0sec, Optical Wide/Digital Tele 6.2sec, Digital Wide/Digital Tele 2.3sec. Focus Movement Time: to near 1.0sec Digital Zoom: 12x (432x with optical zoom) Viewing Angle: Approx. 57.8° (wide end) to Approx. 1.7°(Tele end) Min. Working Distance: 320mm (Wide end), 1500mm (Tele end) Sync System: Internal / External (V-Lock) Min. Illumination: 1.4 Lux/1/60 sec (NTSC), 1/50sec (PAL) (Typical value) 0.1 Lux/1/4 sec (NTSC), 1/3sec (PAL) (Typical value) 0 Lux with IR LEDs on (Integrated High Power IR LED Illuminator Delivers up to 300ft Infrared distance) Recommended Illumination: 100 to 100,000 Lux S/N Ratio: 50dB (Weight ON) Back Light Compensation (BLC): ON/OFF Electronic Shutter Speed: NTSC: 1/4 to 1/10000 sec. (20 steps) PAL: 1/3 to 1/10000 sec. (20 steps) White Balance: AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB Gain: Auto / Manual (-3 to 28dB, 16steps) Wide Dynamic Range (WDR): ON/OFF Aperture Control: 16 Steps Video Output: VBS: 1.0Vp-p (Sync negative), Y/C Output PTZ Performance: Pan Preset Speed: 100°/s Tilt Preset Speed: 60°/s Pan Speed: 0°~80°/s Pan Range: 360° Continuously Presets: 128 presets , 6 track Groups with 16 presets each Communication: RS485 control Baud rate from 2400Bps to 19200Bps, Relative Humidity: 90% without agglomeration Work Temperature: -35°C to 55°C Shock: 4G Power: Power Supply: DC10.5V ~ DC18V (50VA) (optional) AC24V (60VA) Consumption: 45WATTS Max with all functions
