HD-SDI 1080p Weatherproof Lipstick Camera 3.6mm Lens, 12VDC
Overview
3G SDI Bullet Camera with C/CS Mount, the world’s smallest SDI Bullet Camera, is one universal HD camera designed for surveillance, industrial, sports or any mobile applications. It is small size, light weight, weatherproof, high sensitivity and low power consumption. With HD high quality glass lens, it can capture beautiful, crisp 1080p video into SDI signal. Any industrial standard CS Mount lens from fix to zoom can be installed for critical or creative applications.Features
- 2 Megapixel full HD 1080p Bullet Camera
- 3G SDI output for long distance
- Low light high sensitivity 1/3″ CMOS sensor
- CS Mount with maximum flexibility
- High Quality ISP with OSD menu options
- No video distortion and latency
- Weatherproof design
- Rugged aluminium bullet shape housing

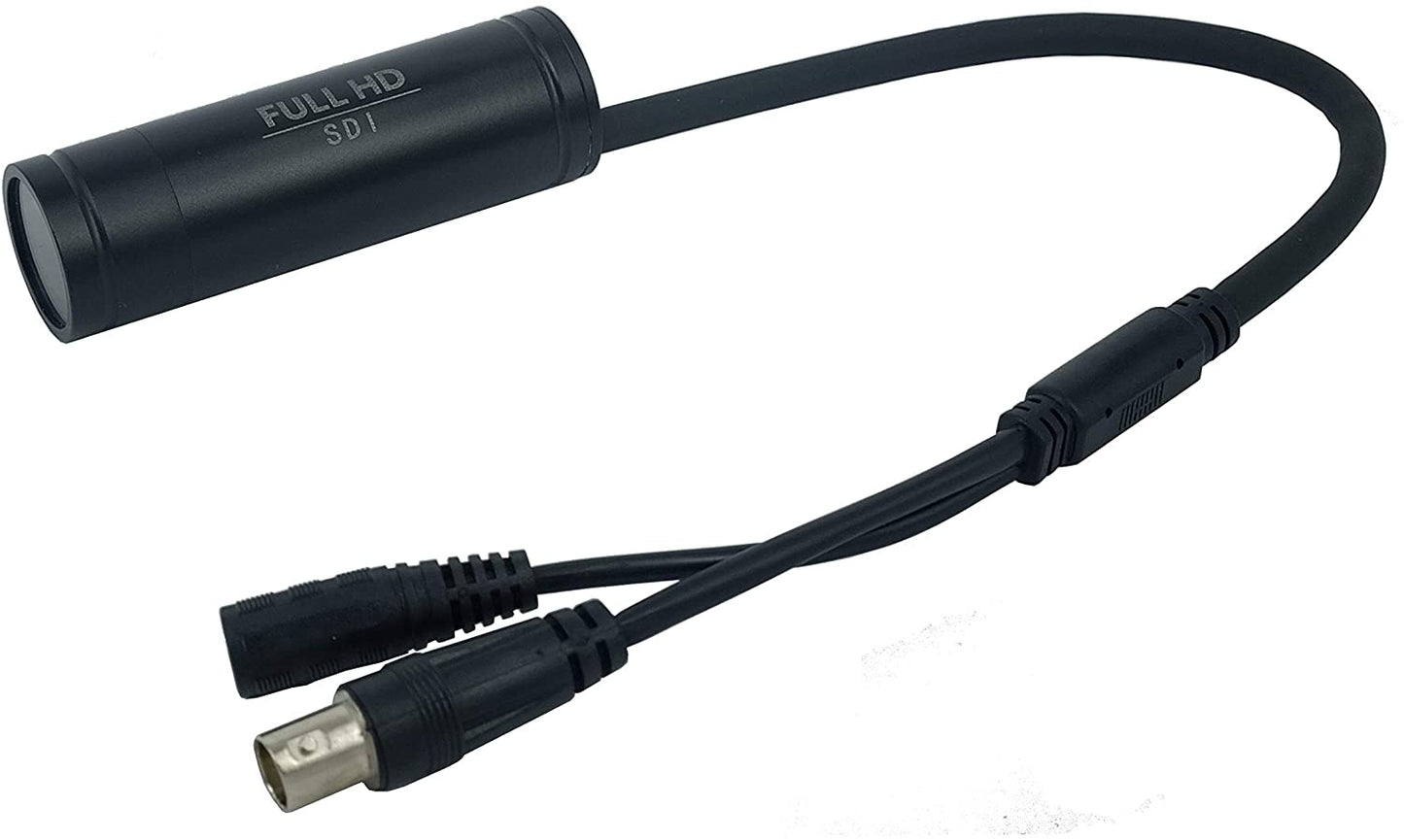

- BNC video output, 2.1mm X 5.5mm 12VDC power socket
Power | Voltage |
9-28VDC +/- 10% |
Consumption | 12VDC 260mA | |
Video | Format | 1080p50/60 |
Output | 3G-SDI, 2.97Gb/s | |
Camera | Size | 1/3″ |
Active Pixel | 1920×1080, 2.2um pixel size | |
Lens | 3.6mm fixed | |
Lens Mount | CS Mount, C Mount need adapter | |
Sensitivity | 3300mv/lux-sec | |
Dynamic Range | 69db | |
Scan | Progressive scan | |
Shutter | Rolling shutter | |
Exposure | AE,AWB | |
OSD | Menu | |
Adjust | Brightness/Sharpness, 2D/3D NR, AGC, Day&Night, WDR, Defog, Privacy, Zoom | |
Interface | Video | SDI, BNC 75ohm, 800mVpp |
Power | Power Jack 5.5mm x 2.1mm I.D | |
OSD | Built-in, customizing | |
Button |
Five in cable buttons | |
Physical | Dimension | 70 x 27mm (2.75″ x 1.1″) |
Weight | 86g (3.1oz) |
