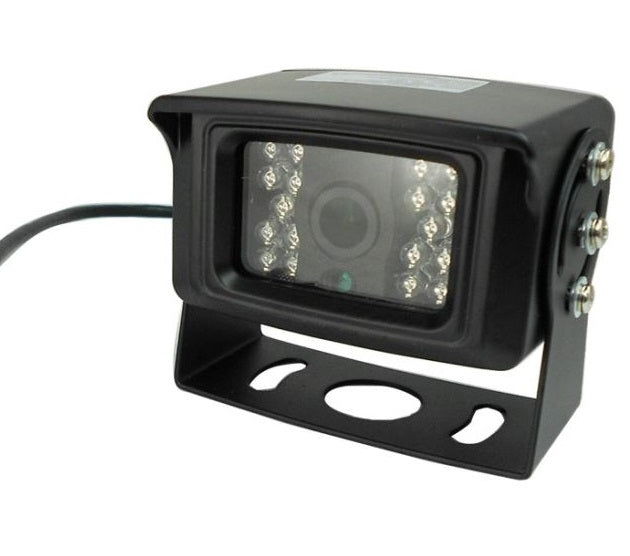

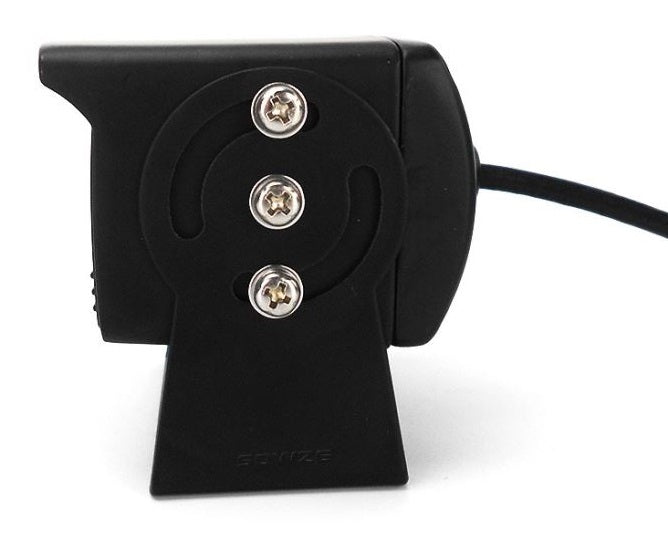

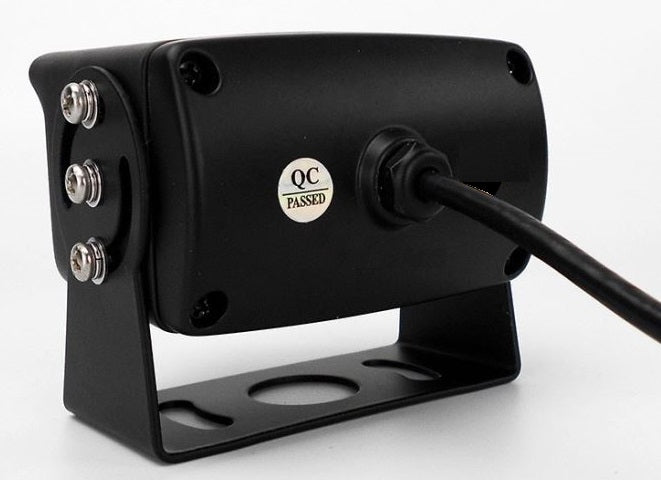

HD-SDI 1080p Weatherproof Backup Style Camera 3.6mm Lens with 30ft. with IR 12VDC
Overview
3G SDI Backup Style Camera with Adjustable Mounting with 30ft. Infra-red Night Vision. IP67 for Industrial applications, HD high quality glass lens, it can capture a crisp HD-SDI output signal.Features
- 2 Megapixel full HD 1080p Bullet Camera
- 3G SDI output for long distance
- Low light high sensitivity 1/3″ CMOS sensor
- CS Mount with maximum flexibility
- High Quality ISP with OSD menu options
- No video distortion and latency
- IP767 Weatherproof design
- Rugged aluminium housing
- BNC video output
- 12VDC input power via 2.1mm X 5.5mm Socket
ower | Voltage |
9-28VDC +/- 10% |
Consumption | 12VDC 500mA | |
Video | Format | 1080p50/60 |
Output | 3G-SDI, 2.97Gb/s | |
Camera | Size | 1/3″ |
Active Pixel | 1920×1080, 2.2um pixel size | |
Lens | 3.6mm fixed | |
Lens Mount | Adjustable U Mount | |
Sensitivity | 3300mv/lux-sec | |
Dynamic Range | 69db | |
Scan | Progressive scan | |
Shutter | Rolling shutter | |
Exposure | AE,AWB | |
OSD | Menu | |
Adjust | Brightness/Sharpness, 2D/3D NR, AGC, Day&Night, WDR, Defog, Privacy, Zoom | |
Interface | Video | SDI, BNC 75ohm, 800mVpp |
Power | Power Jack 5.5mm x 2.1mm I.D | |
OSD | via Built-in on cable for image customizing | |
IR range |
10 meters (33ft.) |
|
Physical | Dimension | 78x78x65mm (3″ x 3″ x 2.5") |
Weight | 280g (10oz) |
