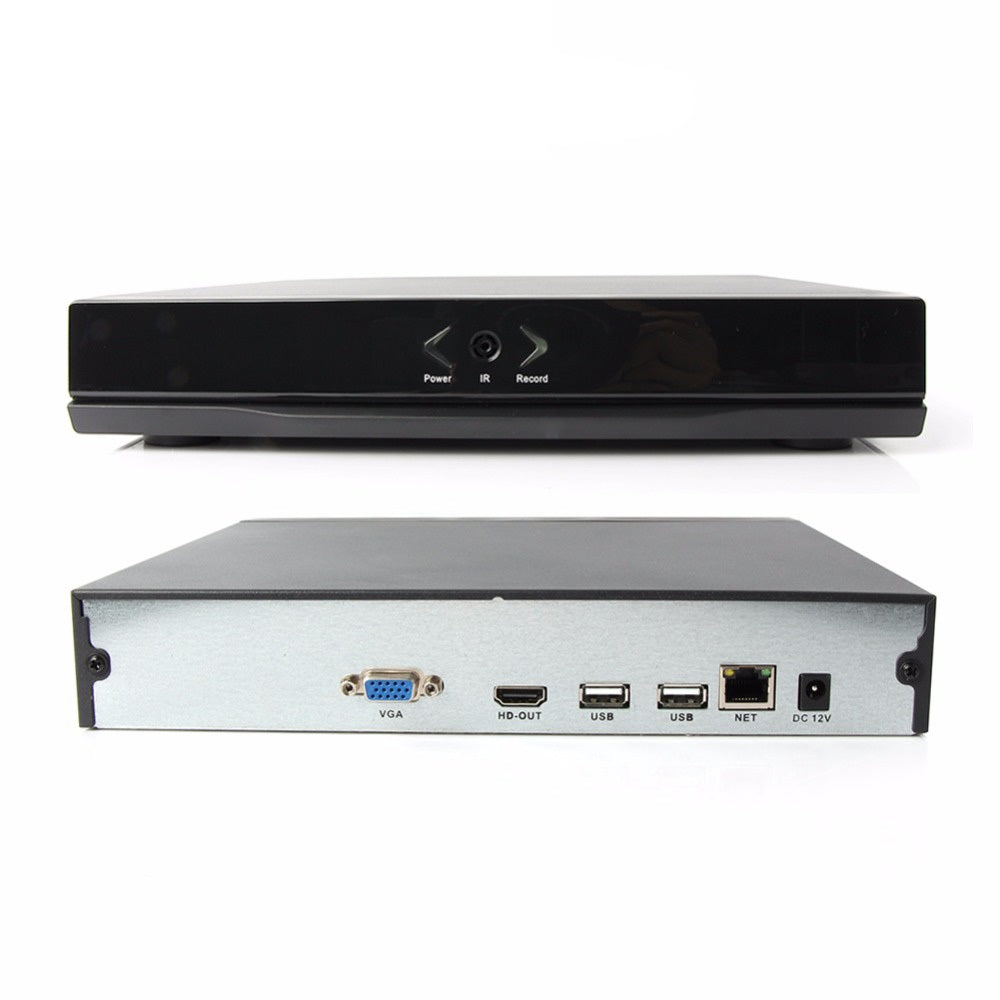

8-Channel NVR Smart Phone Compatible

8 Channels H.265 NVR Sensor Features and Parameters(Support H.264):

• 8Ch NVR: 8CH 4MP,4CH 3MP/5MP,16CH 960P

• Support 8Ch 4MP, 4Ch 3MP/5MP, 16Ch 960P Network Video Input;

• Support HDMI 4K full HD output simultaneously;

• Support ONVIF; Support Third-party network cameras;

• Support Web, CMS, platform management software XMEYE, Provide SDK;

• Support cloud service, network penetration, alarm information pushed to phone, etc;

• Support multiple network services like DHCP,FTP,DNS,DDNS,NTP,UPNP,EMAIL,IP searches, Alarm Center, etc

***H.265 Only work for XM IP Cameras, third Party IP Cameras only work for H.264*

Specification:

System	Operating System	Embedded Linux Hi3798M
	System Resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Operator Interface	Operator interface	16-bit true color graphic menu operation interface, support mouse operation
	Preview
		8Ch: 1/4/8
Video	Video input (IP)
		8Ch: 8*4MP,4*3MP/5MP,16*960P
	Video standards	PAL(625TVL,50f/s);NTSC(525TVL,60f/s)
	Video compression	H.265/H.264
	Display quality	Max:4K( support:1920*1080, 1280*720,
		1440*900,1280*1024, 1024*768)
	Playback quality
		8Ch: 5MP/4MP/3MP/960P
	Decode
		8Ch: 2*5MP/4*3MP/4*4MP
	Motion detection	Depend on camera
Audio	Audio compression	G.711a(Must IPC Support)
	intercom	Unsupport
Record & playback	Recording mode	Manual>Alarm>Video Detection>Continuous
	Local Playback
		8Ch: 2*5MP/4*3MP/4*4MP
	Search mode	Search by Time/calendar/event/channel
Storag & Interface	Record Storage	HDD ,network
	Backup mode	Network backup, USB hard disk, USB burner, SATA burner
	Video output	1ch HDMI HD +1ch VGA Output
other	LOOP VOUT	Unsupport
	Audio I/O	0/0
	Alarm I/O	0/0
	Network interface	1*RJ45 10M/100M Adaptive Ethernet port
	PTZ control	N/A
	USB interface	2*USB2.0 port
	Hard disk	1*SATA(Single maximum support 6TB)
	ESATA	N/A
	Power supply	12V/2A
	ONVIF	Support 2.0-2.5
System	Power Consumption	<10W(Without HDD)
	Temperature	-10 to +60
	Humidity	10%-90% RH
	Atm	86kpa-106kpa
	Dimension	260mm(H)*190mm(W)*43mm(H)
	Package Size	330mm(H)*310mm(W)*75mm(H)
	Net Weight	Around 1200g

Packing List:

• 1*8CH H.265 CCTV NVR
• 1*USB Mouse
• 1*Power Supply 12V 2A
