500 ft. Range 5.8Ghz Weatherproof IP Gigabit Video Link for 4K video streams or up to 32 (2MP) IP Cameras
INCLUDES:

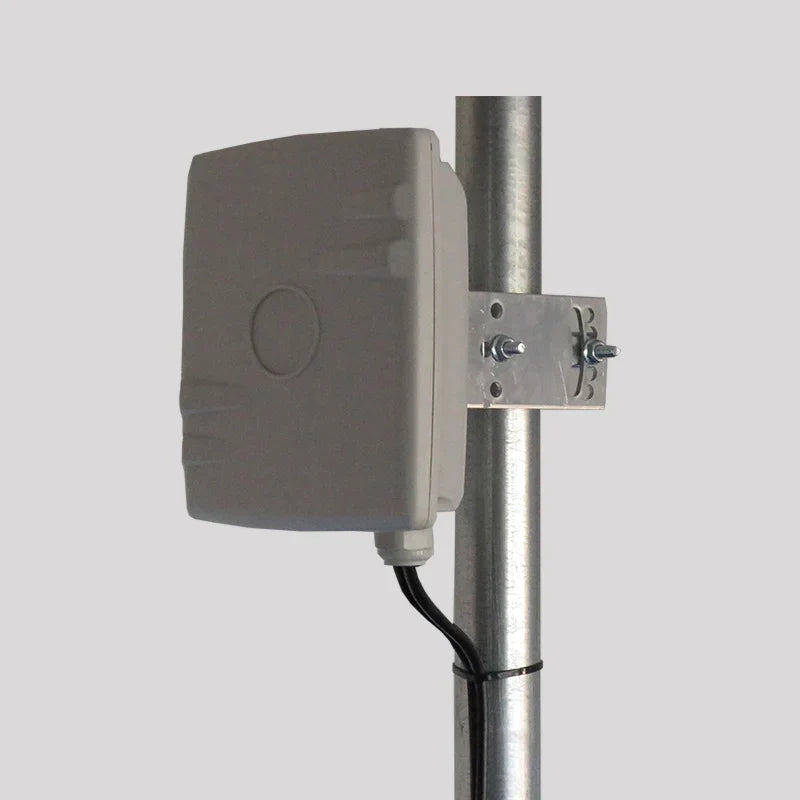

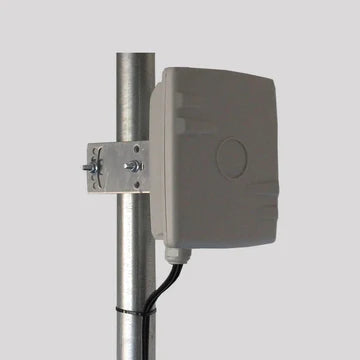

(1) Transmitter, (1) Receiver both housed in a NEMA-4 Weatherproof Enclosure with adjustable Wall Mount or Pole Mount Bracket for up to 2" Pole Mounting.(2) 110/220VAC to 12VDC (2amp) power supplies and setup instructions
• Plug & Play for easy installation
• Multiple systems may be used for Point-to-Multi- Point applications. This is an Exclusive Feature providing more solutions for your Wireless Video requirements.
• Each system is custom made-to-order, factory pre-set and labeled so there is No Programming required
• 500 ft. Clear-Line-of-Sight Range for point-to-point applications with Gigabit speeds • Supports 4K or up to 32 (2MP) or 16 (4MP) IP ONVIF compatible Cameras (Ethernet Switch required for multiple cameras)
• Standard Fixed, Fixed Motorized Zoom and/or PTZ (pan-tilt-zoom) cameras are all supported for remote control
• Great for almost any application where running cables is too expensive or not an option
• All our equipment can be powered by 12VDC for Solar, Wind or rechargeable battery applications
• Multiple systems can be used in the same area without interference
• Systems use Straight-Thru CAT5 or CAT6 Ethernet cable, we can provide Outdoor Rated Cables or you can supply yourself
• One-Year Warranty
• Life-Time Technical Support to the original purchasing customer
FOR TRANSMITTER & RECEIVER:
Enclosure: NEMA-4 Weatherproof Enclosure Size: 7″ X 7″ X 2.5″ with adjustable Wall or Pole Mounting Bracket for up to 2″ pole mounting (3″ w/o mounting) Weight: 2.1lbs.
(955 grams) per unit (with out mounting hardware)
General Specifications |
|
Input voltage |
DC 12V ~ 10% |
Current consumption |
<750mA |
Antenna type |
Internal |
Operating temperature |
-40F to +170F |
Storage temperature |
-40F to +170 F |
Operating humidity |
Less than 85% |
Storage humidity |
Less than 90% |
Clear-Line-of Sight Range between TX & RX 500 ft. (tested) at 10ft. higher than any obstructions in Phoenix, AZ USA Frequency 5.8Ghz Encryption AES-128 Data Rate Over 1.5Gbps LAN Port 1 RJ45 FCC & CE |
