3000ft. Range 5Ghz HD-SDI & HDMI Wireless Video System
3000ft. Range 5Ghz HD-SDI & HDMI Wireless Video System
Regular price
$5,499.00 USD
Regular price
Sale price
$5,499.00 USD
Unit price
per
Shipping calculated at checkout.
3000ft. Range 5Ghz HD-SDI & HDMI Wireless Video System
Couldn't load pickup availability

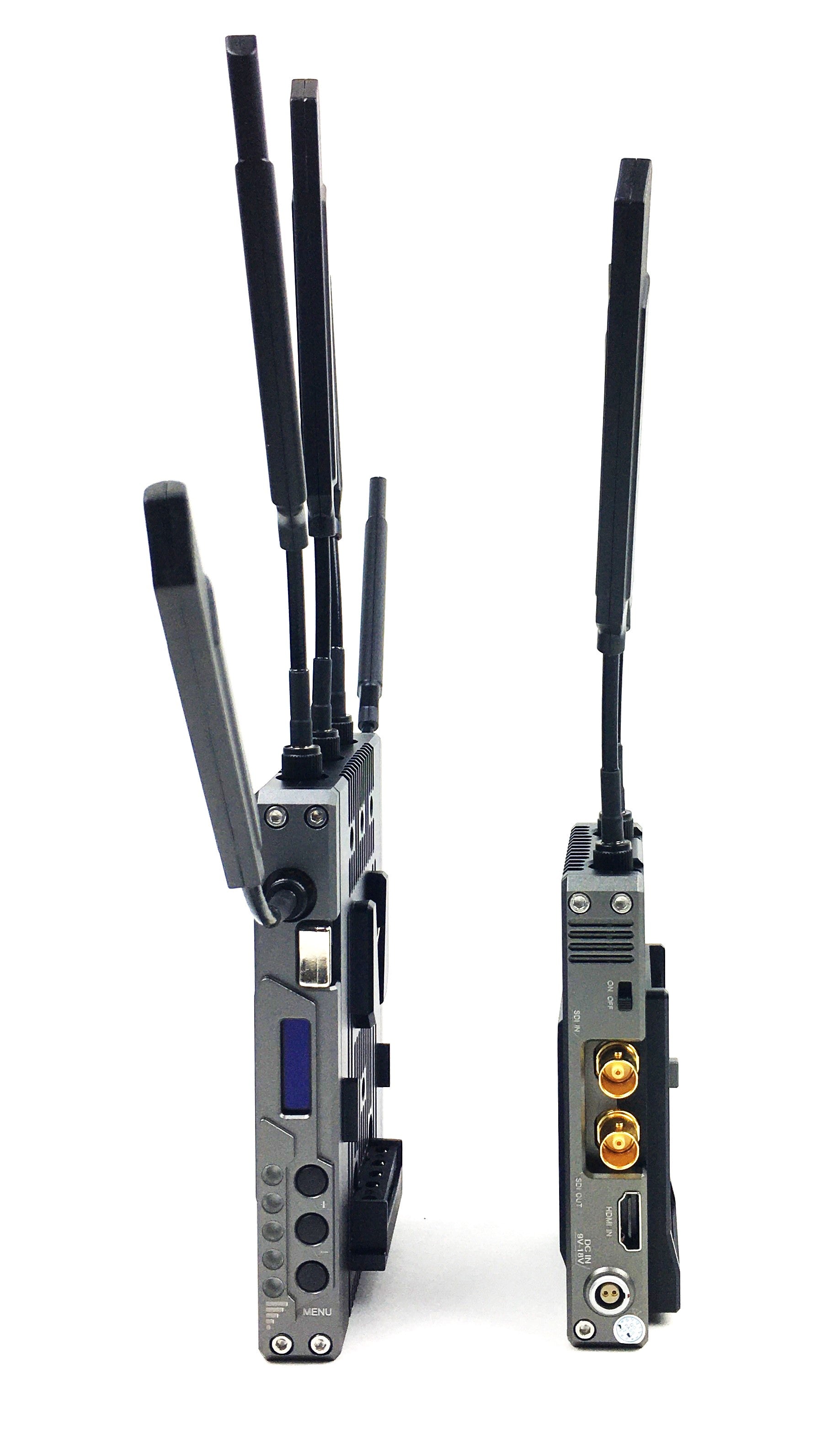

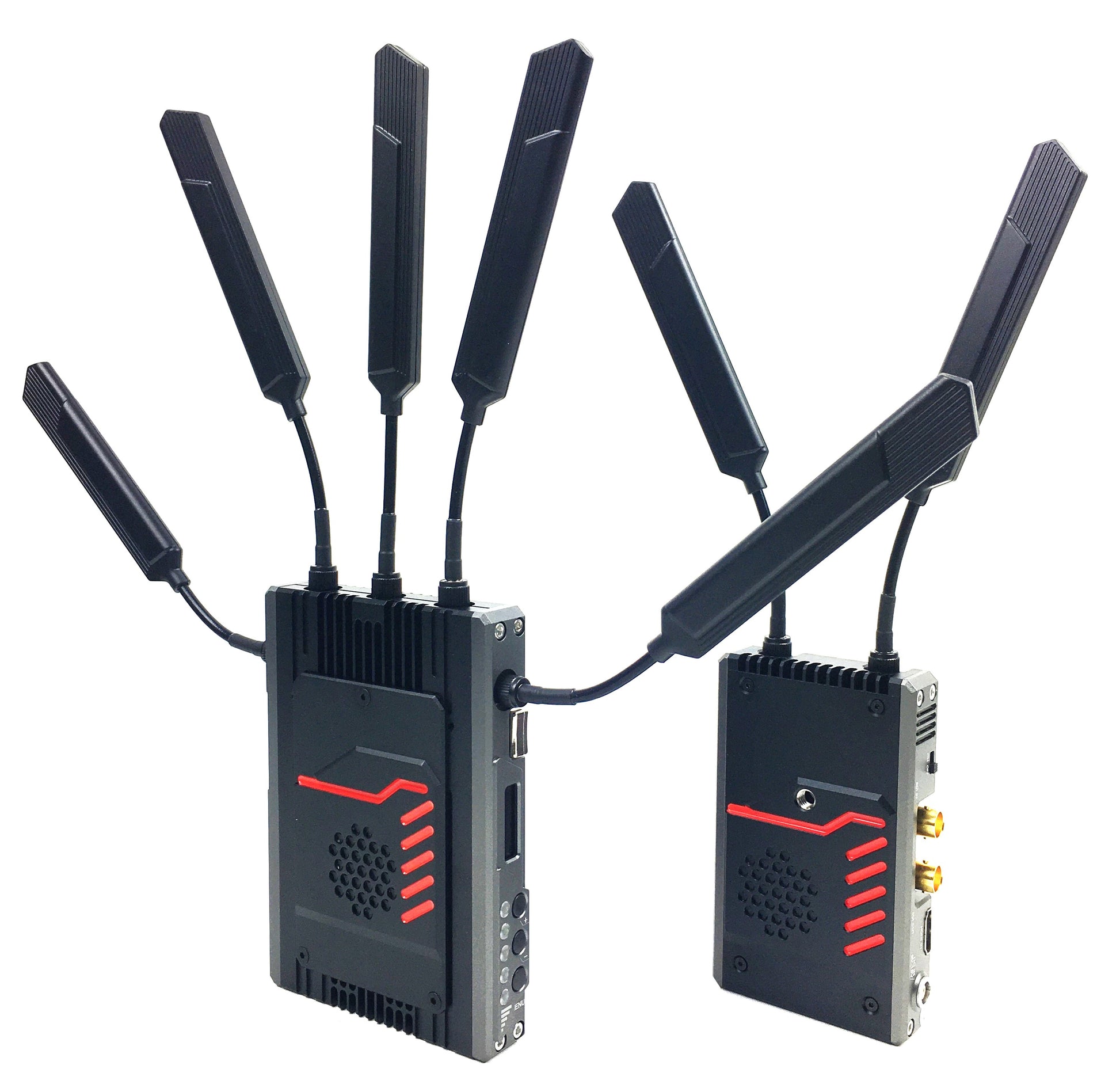

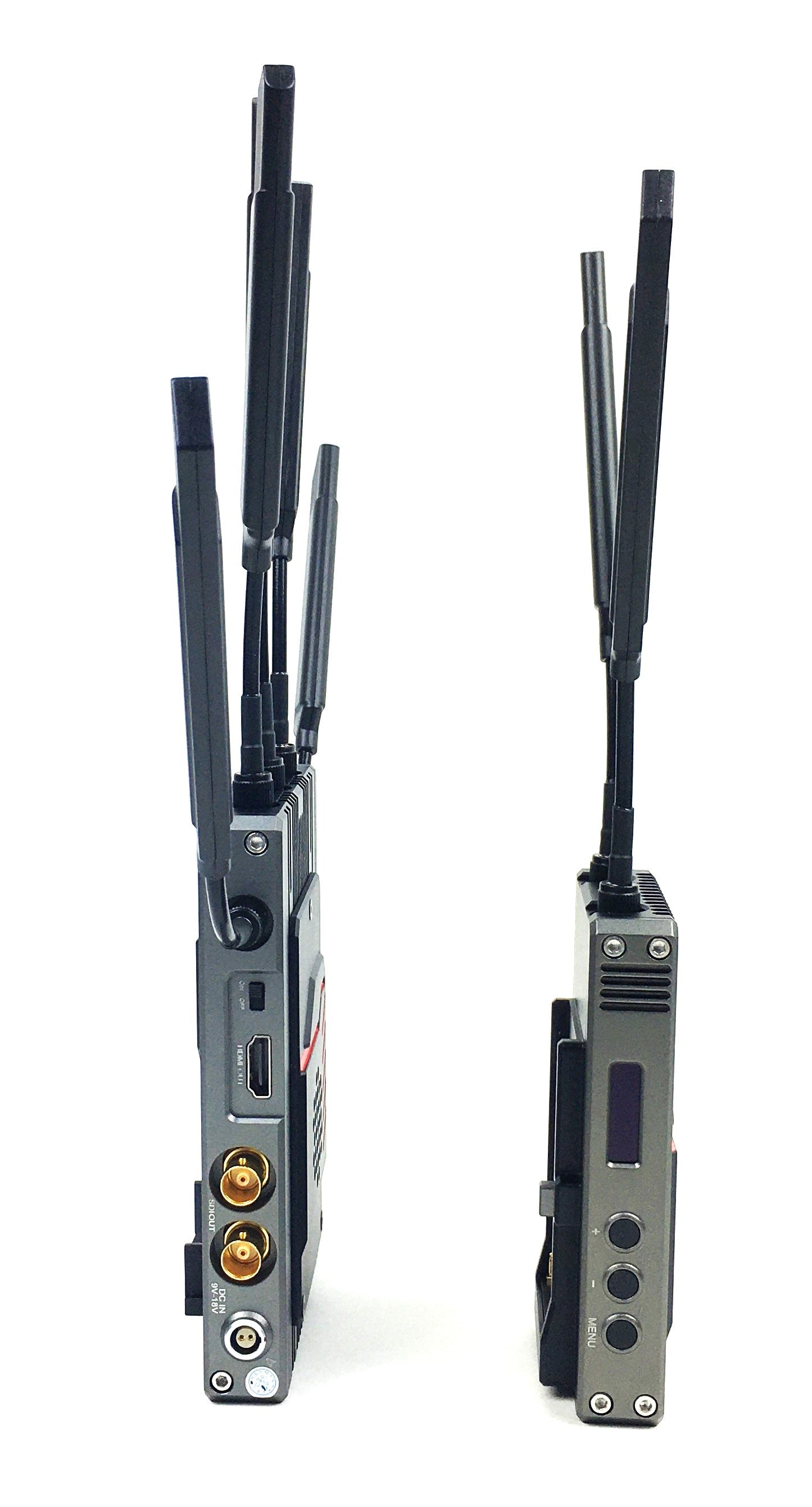

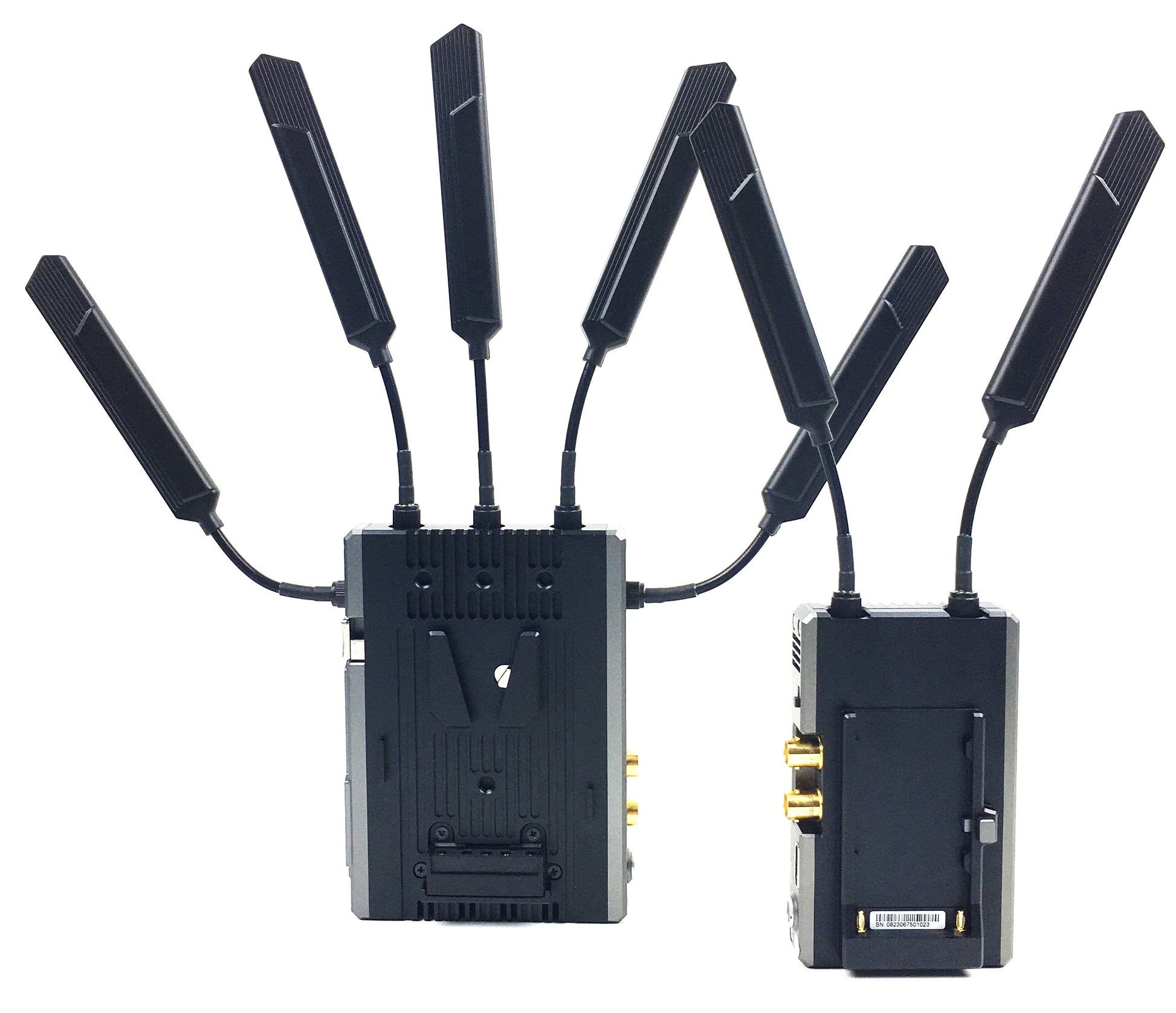

3000ft. Range 5Ghz HD-SDI & HDMI Wireless Video System
WVC-HD-3000
INCLUDES:
(1) Transmitter, (1) Receiver, (7) Omni-Directional Antennas, (2) LEMO to D-Tap cables and Hard Shell Carry case.

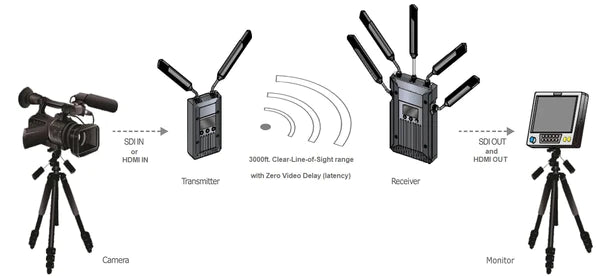

- Zero Latency (video delay) with Plug & Play 1080 HD Wireless Video
- 10 Fixed Channels which are end user selectable for Rock-Solid Performance
- Over 3000ft. Clear-Line-of-Sight Range
- Transmitter provides either HD-SDI input via BNC or HDMI (via Type-A) video inputs
- Transmitter also supplies HD-SDI Loop-Out via 2nd BNC
- Receiver provides 2 HD-SDI video outputs via BNC & 1 HDMI (via Type-A) which can all be used at the same time
- Sun Light Readable LDC for channel selection display
- Push Button Channel Selection
- Wide Voltage Range, 9VDC to 36VDC, optional AC power adapters are available
- Multiple systems can be used in the same area without interference
- Multiple systems may be used for Non-Line-of-Sight applications to achieve Clear-Line-of-Sight
- Options are available for extended range & performance, call us for details
- One-Year Warranty
- Life-Time Technical Support to the original purchasing customer
We recommend to always purchase a system that is at least twice as powerful as the distance you require. Please see our Wireless Video Basics 101 or contact us via phone or email if you need assistance. With over 30 years of experience providing Wireless Video Solutions worldwide we can assist you with the design of your project by always giving you the most cost effective solution for your project.
Transmitter
| Video Interface | HD-SDI (BNC) & HDMI video input (can use one or the other SDI has top priority) |
| Antenna Connectors | (2) RP-SMA female |
| Power Input | 2-Pin LEMO (female) 9-36VDC >8watts power consumption |
| ON/OFF Switch | Yes (located at side of case) |
| Size | 118mm X 70mm X 19mm 4.67” X 2.75” X .75” (not including antennas) |
| Weight | 168 grams (6 oz.) (without antennas) 213 grams (7.6 oz.) (with antennas) |
| Video Input Format | HDMI: SD, HD 525i, 625i, 720p, 1080i, 1080p; via HDMI Type A SDI: 3G, HD & SD-SDI (auto selected), SMPTE-259/274/292/296/ 372/424/425; via BNC |
| Video Output Format | Loop Out |
| Audio Input Format | SDI embedded 4-channel 24bit/48Khz |
| Audio Output Format | N/A |
| Frequency Range | 5.1Ghz to 5.9Ghz |
| Channel Selection | Push Button with Sunlight readable LCD to view Channel Setting |
| Modulation | OFDM 16QAM |
| Transmission Power | 23dBm (maximum) |
| Receiver Sensitivity | N/A |
| Bandwidth | 40Mhz |
| Transmission Range | over 3000ft. Clear-Line-of-Sight Range (tested with TX & RX at 5ft. elevation with standard antennas)Over 2.5 Miles Clear-Line-of-Sight with High Gain Panel Antenna for RX and Add-On Module for TX |
| LED Indicators | Green (power) Yellow (video) |
| Brass Threaded Insert | #20 ¼” front, rear and base of case |
| Temperature Range | -20C to +60C (operating) -25C to +65C (storage) |
| Compliance Certifications | FCC & CE |
| Video Interface | HD-SDI (BNC) & HDMI video input (can use both at the same time) |
| Antenna Connectors | (5) RP-SMA female |
| Power Input | 2-Pin LEMO (female) 9-36VDC >9watts power consumption |
| ON/OFF Switch | Yes (located at side of case) |
| Size | 141mm X 98mm X 19mm 5.5” X 3.85” X .75” (not including antennas) |
| Weight | 423 grams (15.1 oz.) (without antennas) 499 grams (17.8 oz.) (with antennas) |
| Video Input Format | N/A |
| Video Output Format | HDMI: SD, HD 525i, 625i, 720p, 1080i, 1080p; via HDMI Type A SDI: 3G, HD & SD-SDI (auto selected), SMPTE-259/274/292/296/372/424/425; via BNC |
| Audio Input Format | N/A |
| Audio Output Format | SDI embedded 4-channel 24bit/48Khz |
| Frequency Range | 5.1Ghz to 5.9Ghz |
| Channel Selection | Push Button with Sunlight readable LCD to view Channel Setting |
| Modulation | OFDM 16QAM |
| Transmission Power | N/A |
| Receiver Sensitivity | -75dBm |
| Bandwidth | 40Mhz |
| Transmission Range | over 3000ft. Clear-Line-of-Sight Range (tested with TX & RX at 5ft. elevation with standard antennas)Over 2.5 Miles Clear-Line-of-Sight with High Gain Panel Antenna for RX and Add-On Module for TX |
| LED Indicators | Green (power), 5 Green (wireless RSSI) Yellow (video) |
| Brass Threaded Insert | #20 ¼” front & rear of case |
| Temperature Range | -20C to +60C (operating) -25C to +65C (storage) |
| Compliance | FCC & CE |
