5 mile Range 900Mhz Weatherproof IP HD Video Link

5 mile Range 900Mhz Weatherproof IP HD Video Link

SKU: WIP900-05
Regular price $1,599.00 USD
Regular price Sale price $1,599.00 USD
Sale Sold out
Shipping calculated at checkout.

Systems include (1) Transmitter, (1) Receiver, (2) AC to 12VDC Power Supply, (2) Wall Mount & Pole Mount Brackets, 1-year Warranty & Life-Time Technical Support

View full details

5 mile Range 900Mhz Weatherproof IP HD Video Link use for Near or Non-Line-of-Sight applications (depending on obstructions)

INCLUDES:

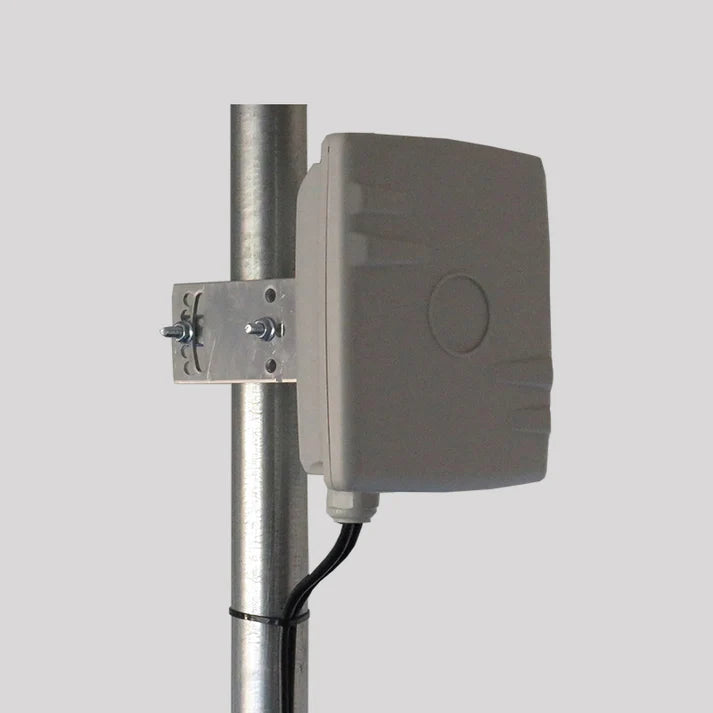

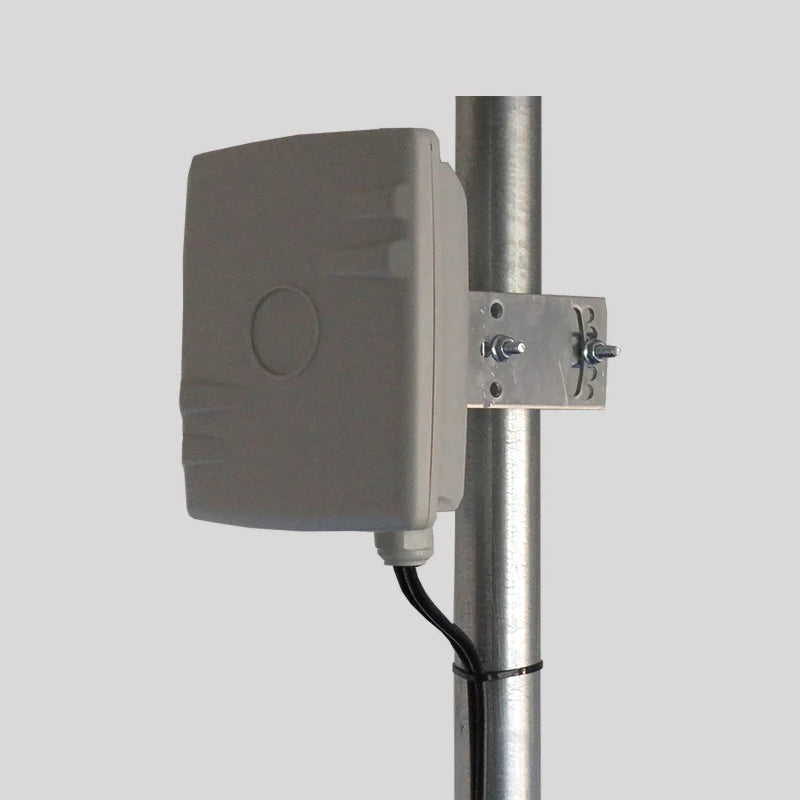

(1) Transmitter, (1) Receiver both housed in a NEMA-4 Weatherproof High Gain Dual Polarity Antenna Enclosure with adjustable Wall Mount or Pole Mount Bracket for up to 2" Pole Mounting.(2) 110/220VAC to 12VDC (2amp) power supplies and setup instructions

• Plug & Play for easy installation

• Each system is custom made-to-order, factory pre-set and labeled so there is No Programming required

•5 mile Clear-Line-of-Sight Range or shorter ranges for Near or Non-Line-of-Sight applications • Supports up to 2 (2MP) or 1 (4MP) IP ONVIF compatible Cameras (Ethernet Switch required for multiple cameras)

• Standard Fixed, Fixed Motorized Zoom and/or PTZ (pan-tilt-zoom) cameras are all supported for remote control

• Great for almost any application where running cables is too expensive or not an option

• All our equipment can be powered by 12VDC for Solar, Wind or rechargeable battery applications

• Multiple systems can be used in the same area without interference

• Systems use Straight-Thru CAT5 or CAT6 Ethernet cable, we can provide Outdoor Rated Cables or you can supply yourself

• May be used for Near or Non-Line-of-Sight applications (depending on obstructions or Multiple systems can be used to achieve Clear-Line-of-Sight

• One-Year Warranty

• Life-Time Technical Support to the original purchasing customer

FOR TRANSMITTER & RECEIVER:

Enclosure: NEMA-4 Weatherproof High Gain Dual Polarity Antenna Enclosure Size: 10.5″ X 10.5″ X 2.5″ with adjustable Wall or Pole Mounting Bracket for up to 2″ pole mounting (3″ w/o mounting)  Weight: 2.1lbs.

(955 grams) per unit (with out mounting hardware)

General Specifications

Input voltage

DC 12V ~ 10%

Current consumption

<750mA

Antenna type

Dual Polarity High Gain Directional

Operating temperature

-40F to +170F

Storage temperature

-40F to +170 F

Operating humidity

Less than 85%

Storage humidity

Less than 90%

Clear-Line-of Sight Range between TX & RX 5 Miles

(tested) at 10ft. higher than any obstructions in Phoenix, AZ USA



Frequency Range 902Mhz to 928Mhz



Encryption AES-128



Data Rate Over 45Mbps



LAN Port 1 RJ45

FCC & CE
