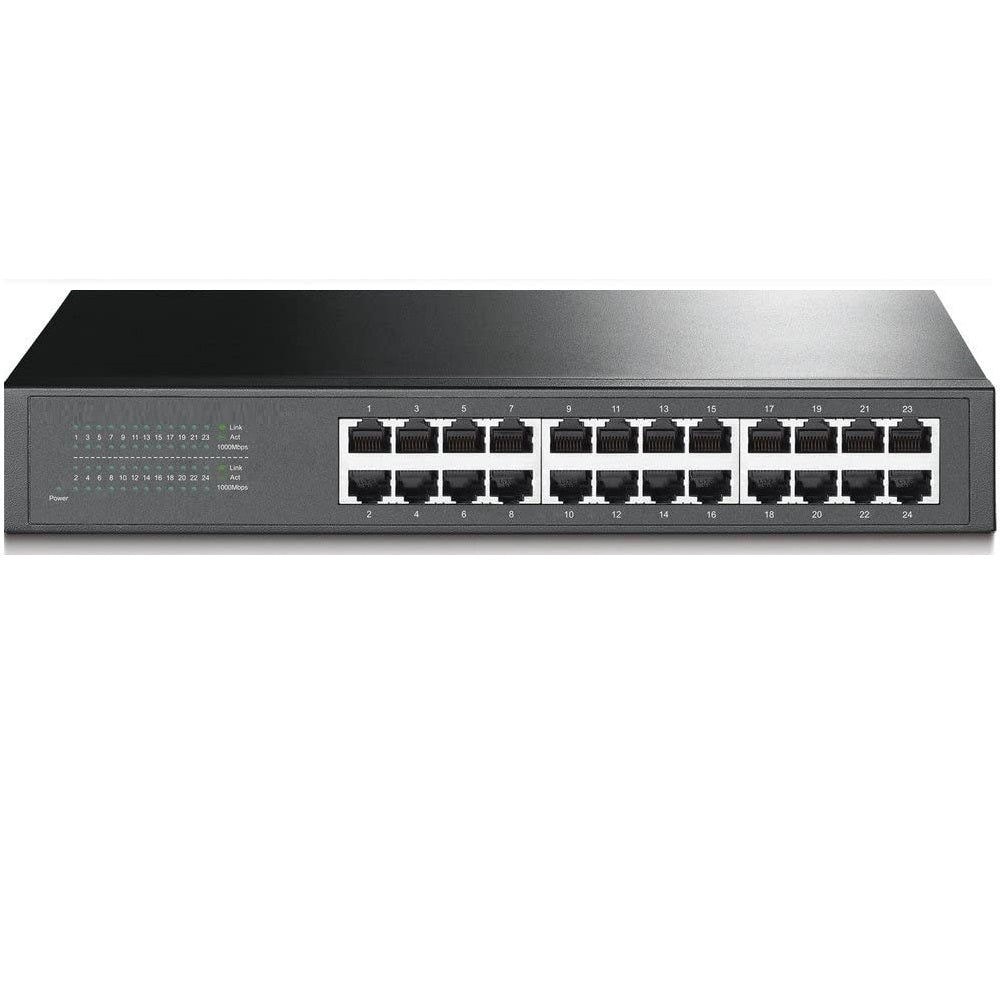

24-port Gigabit Ethernet Switch (passive)

24-port Gigabit Ethernet Switch (passive)

Regular price $329.00 USD
Regular price Sale price $329.00 USD
Sale Sold out
Shipping calculated at checkout.

24-port Gigabit Ethernet Switch (passive) Non-POE, includes, 19" Rack Mount Brackets, AC Power Cord, 1-year warranty & life time technical support.

View full details


24-Port Gigabit Ethernet Switch (passive


    • 24 10/100/1000Mbps RJ45 ports

    • Innovative energy-efficient technology saves power consumption

    • Supports MAC address self-learning and auto MDI/MDIX

    • Standard 19-inch rack-mountable steel case


HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Physical Security Lock No
Power Supply 100-240VAC, 50/60Hz
Dimensions ( W x D x H ) 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)
Mounting 19" Rack Mountable
Max Power Consumption 13.6W
Max Heat Dissipation 46.4BTU/h
PERFORMANCE
Switching Capacity 48Gbps
Packet Forwarding Rate 35.7Mpps
MAC Address Table 8K
Jumbo Frame 10KB
QoS 802.1p/DSCP QoS* *Only for V11 and later version
Green Technology Yes
Transfer Method Store-and-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents 24-Port Gigabit Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet
Environment Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
