2000 ft. Range 5.8Ghz Weatherproof IP Gigabit Video Link

2000 ft. Range 5.8Ghz Weatherproof IP Gigabit Video Link

SKU: WIP5G-2000
Regular price $899.00 USD
Regular price Sale price $899.00 USD
Sale Sold out
Shipping calculated at checkout.

Systems include (1) Transmitter, (1) Receiver, (2) AC to 12VDC Power Supply, (2) Wall Mount & Pole Mount Brackets, 1-year Warranty & Life-Time Technical Support

View full details

2000 ft. Range 5.8Ghz Weatherproof IP Gigabit Video Link for 4K video streams or up to 32 (2MP) IP Cameras

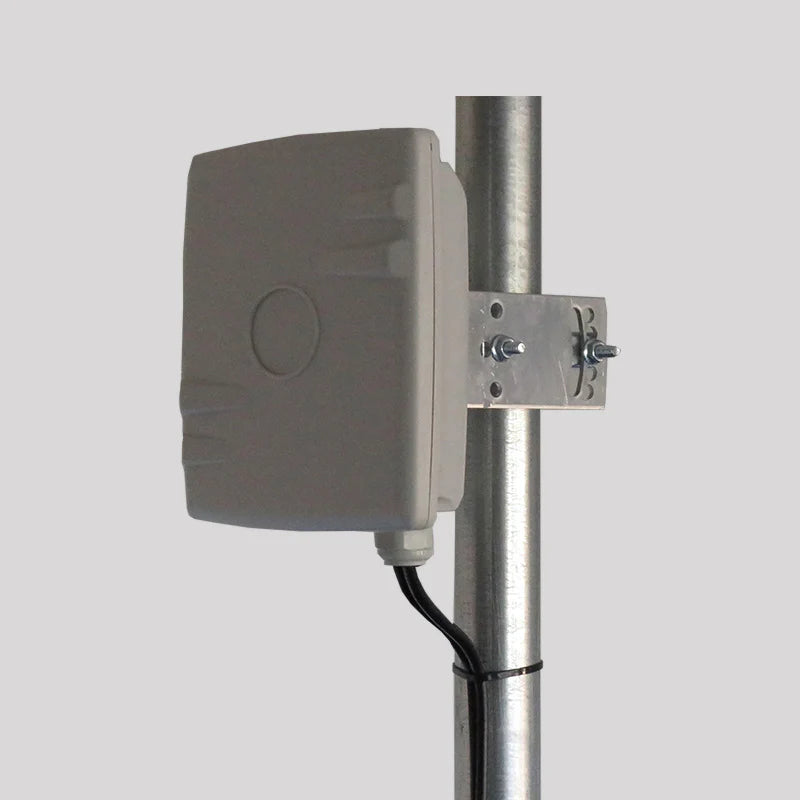

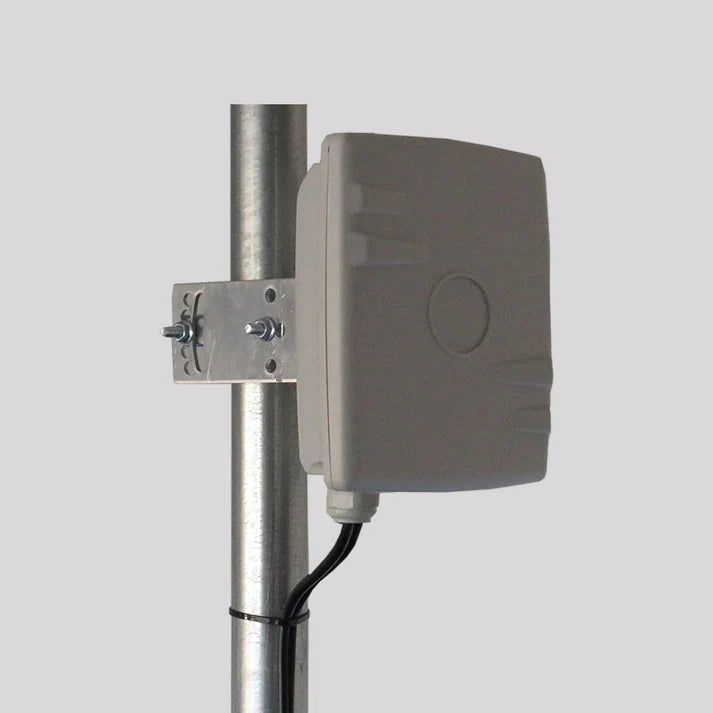

(1) Transmitter, (1) Receiver both housed in a NEMA-4 Weatherproof Enclosure with adjustable Wall Mount or Pole Mount Bracket for up to 2" Pole Mounting.(2) 110/220VAC to 12VDC (2amp) power supplies and setup instructions

• Plug & Play for easy installation

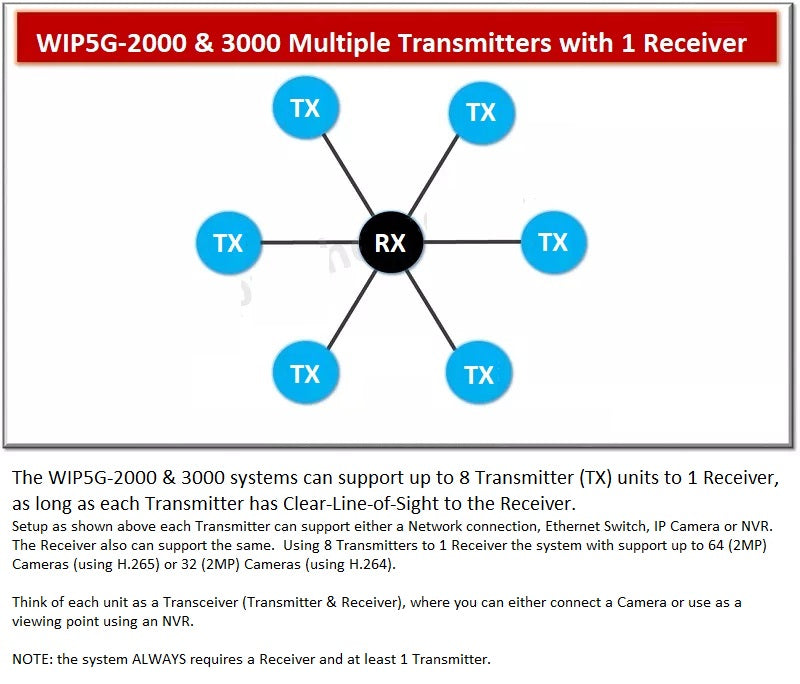

• Multiple systems may be used for Point-to-Multi- Point applications.  This is an Exclusive Feature providing more solutions for your Wireless Video requirements.

• Each system is custom made-to-order, factory pre-set and labeled so there is No Programming required

• 2000 ft. Clear-Line-of-Sight Range for point-to-point applications with Gigabit speeds • Supports 4K or up to 32 (2MP) or 16 (4MP) IP ONVIF compatible Cameras (Ethernet Switch required for multiple cameras)

• Standard Fixed, Fixed Motorized Zoom and/or PTZ (pan-tilt-zoom) cameras are all supported for remote control

• Great for almost any application where running cables is too expensive or not an option

• All our equipment can be powered by 12VDC for Solar, Wind or rechargeable battery applications

• Multiple systems can be used in the same area without interference

• Systems use Straight-Thru CAT5 or CAT6 Ethernet cable, we can provide Outdoor Rated Cables or you can supply yourself

• One-Year Warranty

• Life-Time Technical Support to the original purchasing customer


Enclosure: NEMA-4 Weatherproof Enclosure Size: 7″ X 7″ X 2.5″ with adjustable Wall or Pole Mounting Bracket for up to 2″ pole mounting (3″ w/o mounting)  Weight: 2.1lbs.

(955 grams) per unit (with out mounting hardware)

General Specifications

Input voltage

DC 12V ~ 10%

Current consumption


Antenna type


Operating temperature

-40F to +170F

Storage temperature

-40F to +170 F

Operating humidity

Less than 85%

Storage humidity

Less than 90%

Clear-Line-of Sight Range between TX & RX 2000 ft.

(tested) at 10ft. higher than any obstructions in Phoenix, AZ USA


Frequency 5.8Ghz


Encryption AES-128


Data Rate Over 1.5Gbps


LAN Port 1 RJ45
