WirelessVideoCameras

16 or 32 Channel NVR Smart Phone Compatible

16 or 32 Channel NVR Smart Phone Compatible

Regular price $349.00 USD
Regular price Sale price $349.00 USD
Sale Sold out
Shipping calculated at checkout.

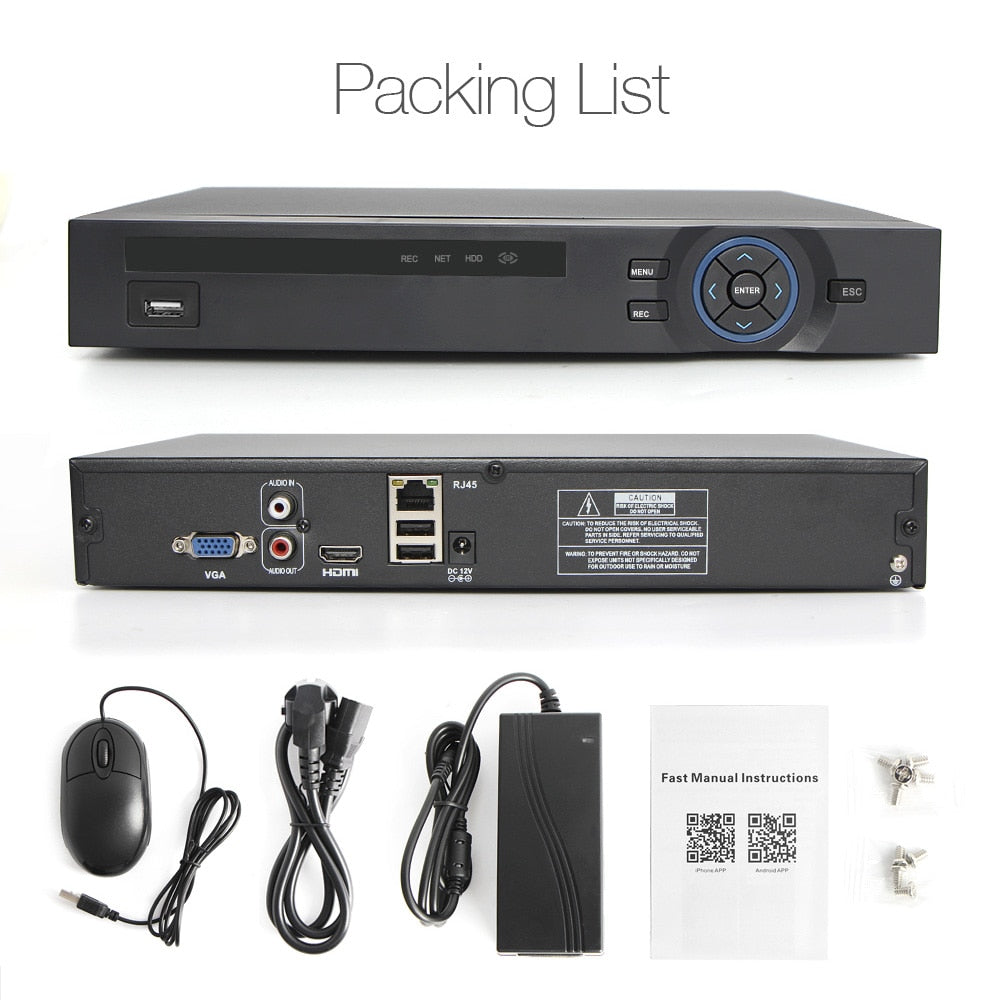

16 or 32-Channel Stand-Alone NVR with Smart Phone Compatible via iPhone or Android APP also Widows or MAC remote viewing.  2 Hard Drive Bays for use of  2 Hard Drives from 1TB to 8TB, Easy to use, Includes, Mouse,  12VDC power, 1-year warranty & life time technical support.

View full details

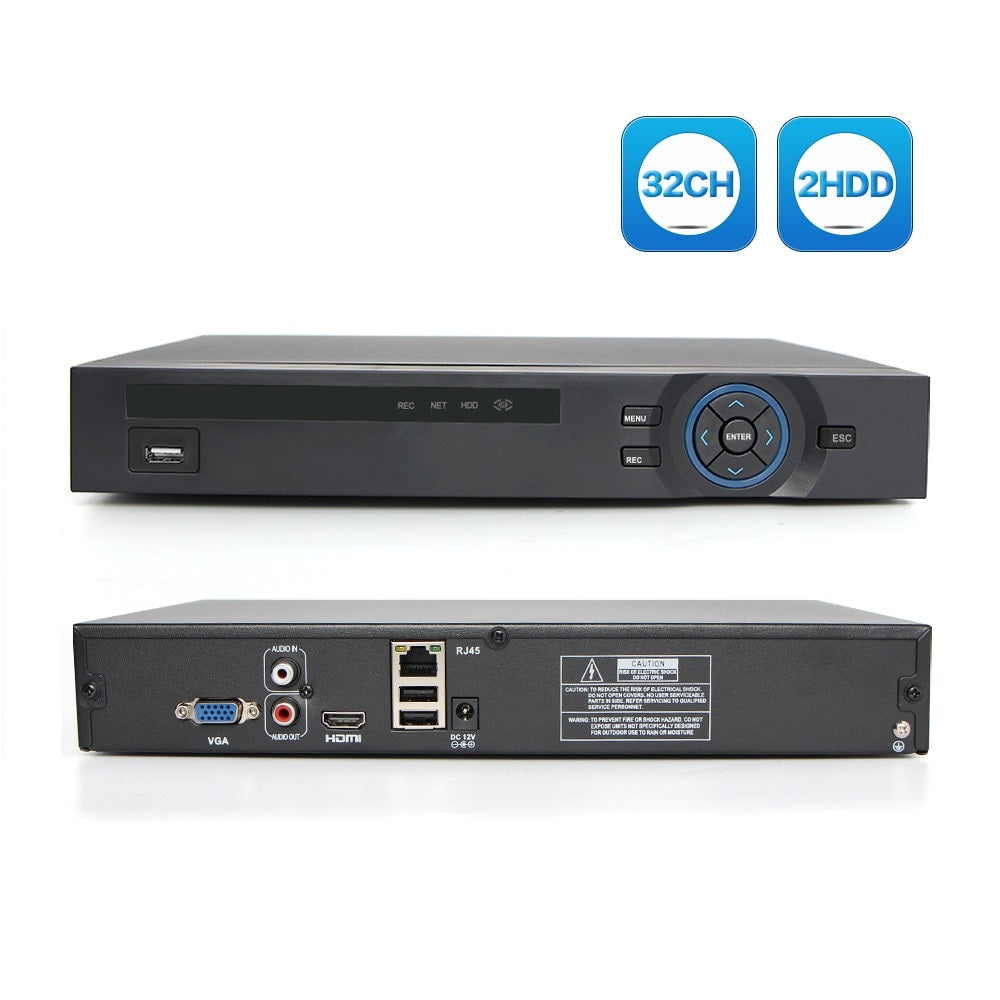

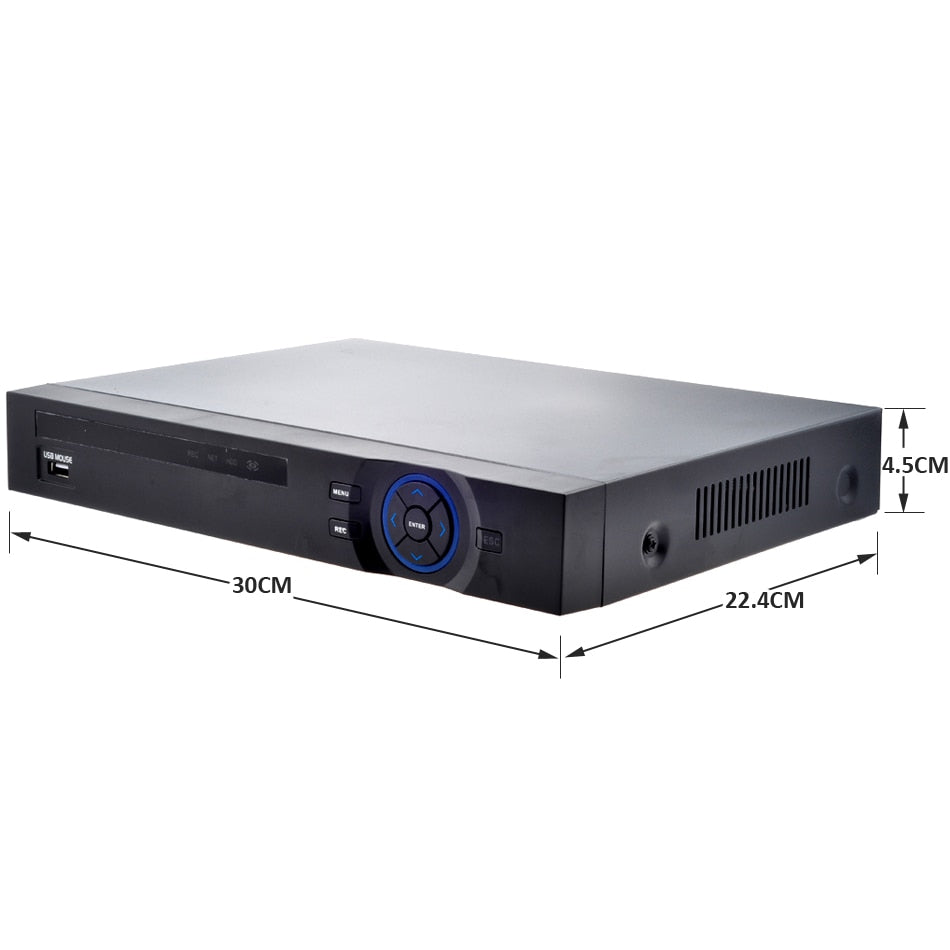

H.265 32Ch NVR 1080P Or 25Ch 5MP Or 8CH 8MP NVR ONVIF Network Recorder Support For Security IP Camera 2x HDD XMeye P2P APP View

Video access: Possessing 8*8MP / 25*5MP / 32*1080P

Features :


    • With H.265/H.264 High efficiency Video Compression

    • Support 32CH 1080P Video Input,4CH 2CH 1080P Playback; 25CH 5MP Video Input,2CH 5MP Playback; 8CH 8MP Video Input,1CH 8MP Playback;

    • With unique time screen in front of the panel, and displays recorder.

    • Support 2xHDD(6TB), with 2xUSB 2.0 for backup, burning, upgrading operation

    • Stronger network service. support IE browse and CMS software

    • Supports 27 languages,  English, Italian, Portuguese, Spanish, French, German and more

    • Support multiple network services like DHCP,FTP,DNS,DDNS,NTP,UPNP,EMAIL,IP searches,Alarm Center,etc

    • With ONVIF protocol, can connect the ONVIF IP camera directly, also can by IE and CMS.

    • Support P2P cloud functions : xmeye

Camera
Sensor 1/3", 4.0megapixel, progressive scan, CMOS
Lens 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.7 60.8 24.3 12.2 6.1
13.5 303.8 121.5 60.8 30.4
Angle of View (H) 98.26°~ 31.35°
Angle of View (V) 54.76°~ 18.55°
Angle of View (O) 127.74°~36.99°
Adjustment angle Pan: 0° ~ 355° Tilt: 0° ~ 80° Rotate:0° ~ 355°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.002Lux (F1.2, AGC ON) 0Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
S/N >56dB
IR Range Up to 40m (131ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Audio
Audio Compression G.711
Two-way Audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation EZView EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/O Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 1/1
Built-in Mic Supported
Network 1 RJ45 10M/100M Base-TX Ethernet
Certifications
Certifications CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 7.0W
Dimensions (Ø x H) Φ148 x 111.3mm (Ø5.8” x 4.4”)
Net Weight 0.92kg (2.03lb)
Material Metal + Plastic
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 6KV
Ingress Protection IP67
Vandal Resistant IK10
Reset Button Supported
