1500 ft. Range 5.8Ghz Weatherproof IP HD Video Link
1500 ft. Range 5.8Ghz Weatherproof IP HD Video Link
Systems include (1) Transmitter, (1) Receiver, (2) POE (power-over-Ethernet) AC Power Supply with Passive LAN Port, (2) Wall Mount & Pole Mount Brackets, 1-year Warranty & Life-Time Technical Support
Couldn't load pickup availability

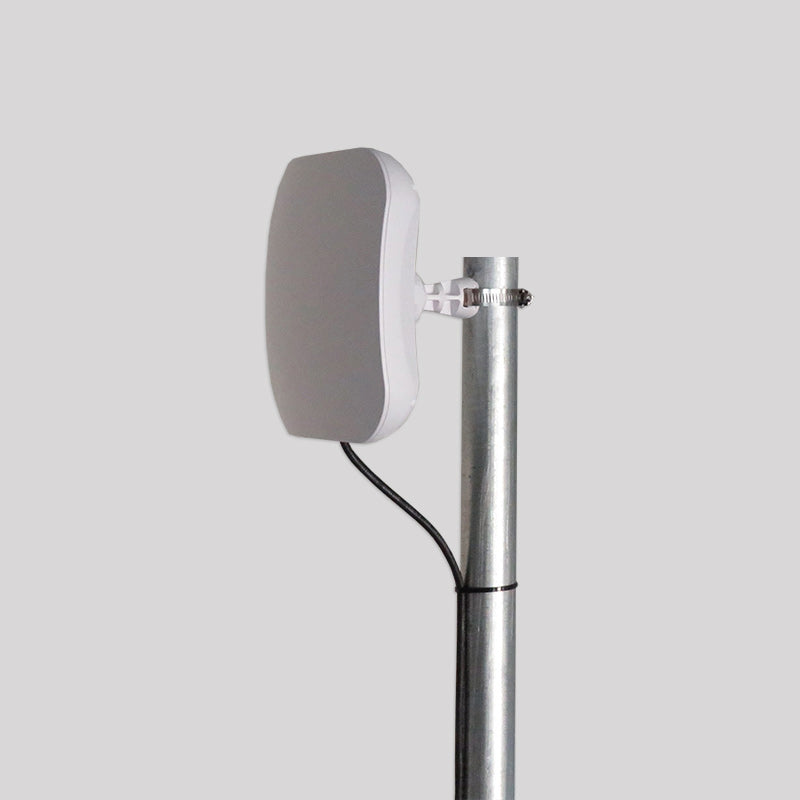

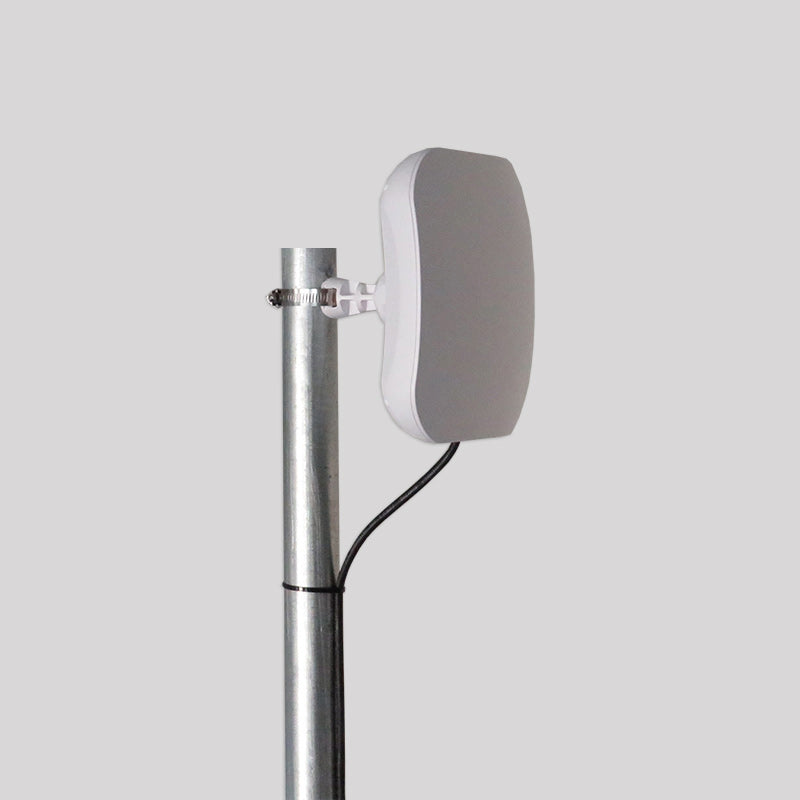

(1) Transmitter, (1) Receiver both housed in a NEMA-4 Weatherproof High Gain Dual Polarity Antenna Enclosure with adjustable Wall Mount or Pole Mount Bracket for up to 2" Pole Mounting.(2) 110/220VAC to POE (Power-Over-Ethernet) Power Injector power supplies and setup instructions.
- Plug & Play for easy installation
- Each system is custom made-to-order, factory pre-set and labeled so there is No Programming required
- 1500 ft. Clear-Line-of-Sight Range
- Supports up to 4 (2MP), 2 (4MP) or 1 (8MP) IP ONVIF compatible Cameras (Ethernet Switch required for multiple cameras)
- Standard Fixed, Fixed Motorized Zoom and/or PTZ (pan-tilt-zoom) cameras are all supported for remote control
- Great for almost any application where running cables is too expensive or not an option
- All our equipment can be powered by 12VDC for Solar, Wind or rechargeable battery applications
- Multiple systems can be used in the same area without interference
- Systems use Straight-Thru CAT5 or CAT6 Ethernet cable, we can provide Outdoor Rated Cables or you can supply yourself
- Multiple systems may be used for Non-Line-of-Sight applications to achieve Clear-Line-of-Sight
- One-Year Warranty
- Life-Time Technical Support to the original purchasing customer
We recommend to always purchase a system that is at least twice as powerful as the distance you require. Please see our Wireless Video Basics 101 or contact us via phone or email if you need assistance. With over 30 years of experience providing Wireless Video Solutions worldwide we can assist you with the design of your project by always giving you the most cost effective solution for your project.
FOR TRANSMITTER & RECEIVER:
Enclosure: NEMA-4 Weatherproof High Gain Dual Polarity Antenna Enclosure Size: 8″ X 8″ X 5″ with adjustable Wall or Pole Mounting Bracket for up to 2″ pole mounting (3″ w/o mounting) Note: Larger Clamps may be used for large poles or mount by using wall mount plate to any flat surface with screws Weight: 17 oz. (482 grams) per unit (with out mounting hardware)| General Specifications | ||
| Input voltage | DC 12V ~ 10% | |
| Current consumption | <750mA | |
| Antenna type | Dual Polarity High Gain Directional | |
| Operating temperature | -40F to +170F | |
| Storage temperature | -40F to +170 F | |
| Operating humidity | Less than 85% | |
| Storage humidity | Less than 90% | |
| Clear-Line-of Sight Range between TX & RX 1500 Feet (tested) at 10ft. higher than any obstructions in Phoenix, AZ USA Frequency Range 5.185Ghz to 5.825Ghz Encryption AES-128 Data Rate Over 300Mbps LAN Ports 2 RJ45 LED Indicators Signal Strength, LAN2, LAN1, WLAN & Power 10 Switch Dip Switch Pack for Setup Configuration Removable Access Cover at base of units for Weatherproof protection of the 2 LAN ports & Dip Switch Pack FCC & CE | ||
