1000 ft. Range 5.8Ghz Weatherproof Video Link

1000 ft. Range 5.8Ghz Weatherproof Video Link

Regular price $899.00 USD
Regular price Sale price $899.00 USD
Sale Sold out
Shipping calculated at checkout.

System includes (1) Transmitter, (1) Receiver, (2) AC Power Supply, (2) Adjustable Pole Mount Brackets and 1-year Warranty & Life-Time Technical Support

View full details

System includes (1) Transmitter, (1) Receiver, (2) AC Power Supply,  (2) Adjustable Pole Mount Brackets and  1-year Warranty & Life-Time Technical Support


--

W58N15-10

1000 ft. Range 5.8Ghz Weatherproof  Video Link





NOTE: This system is for NTSC or PAL Composite Video ONLY, does not support AHD or TVI video


INCLUDES:

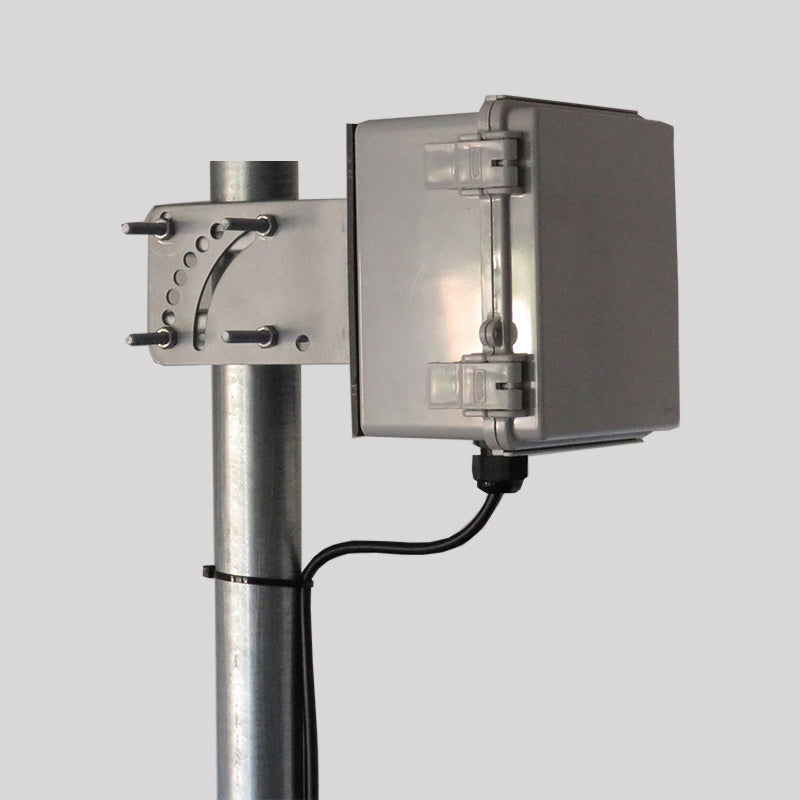

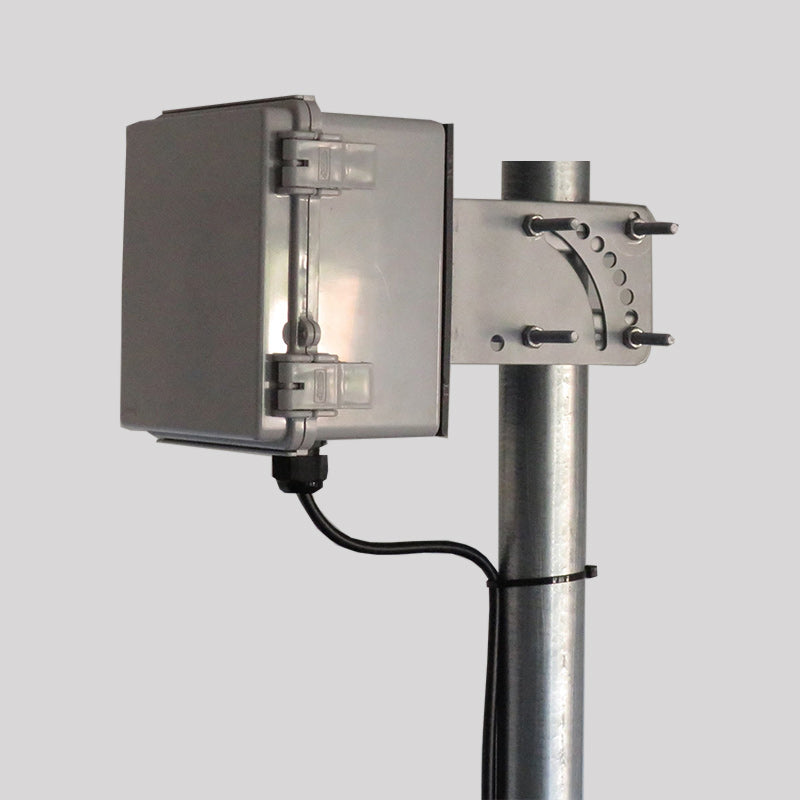

(1) Transmitter, (1) Receiver both housed in a NEMA-4 Weatherproof Enclosure with Directional Patch Antenna, Adjustable "L" Bracket for Pole Mounting up to 2" Pole,  (2) 110/220VAC to 12VDC  2AMP power supplies and setup instructions.  We will supply either Internal Pigtail Cables for using your own RG59 Coax and 12VDC power cables or we can supply standard 30ft. Coax/Power cable from Transmitter to Camera, 30ft. Power cable from Transmitter to power source and 30ft. Coax/Power cable from Receiver to power source and Composite Video output.  All with BNC connectors, for use with most DVR's or Composite Video TV's or Monitors.





  • Plug & Play for easy installation

  • Each system is custom made-to-order, factory pre-set and labeled so there is No Programming required

  • 1000 ft. Clear-Line-of-Sight Range

  • Supports ONLY NTSC or PAL Composite Video

  • Stereo Audio Option Available, contact us at time of order if you need audio

  • Great for almost any application where running cables is too expensive or not an option

  • All our equipment can be powered by 12VDC  for  Solar, Wind or rechargeable battery applications

  • Multiple systems can be used in the same area without interference

  • Systems use RG59 Coax cable, we can provide Outdoor Rated Cables or you can supply yourself

  • Multiple systems may be used for Non-Line-of-Sight applications to achieve Clear-Line-of-Sight

  • One-Year Warranty

  • Life-Time Technical Support to the original purchasing customer





We recommend to always purchase a system that is at least twice as powerful as the distance you require.  Please see our Wireless Video Basics 101 or contact us via phone or email if you need assistance.  With over 30 years of experience providing Wireless Video Solutions worldwide we can assist you with the design of your project by always giving you the most cost effective solution for your project.

Specifications Technical Specification Transmitter: Enclosure: NEMA-4 Weatherproof Enclosure Size: 5.5″ X 5.5″ X 3.5″ with adjustable L-Bracket for up to 2″ pole mounting General Specifications Input voltage DC 12V ~ 10% Current consumption <750mA Antenna type 5dBi Internal Patch Operating temperature -40F to +170F Storage temperature -40F to +170 F Operating humidity Less than 85% Storage humidity Less than 90% Electrical Specifications RF Output 50mV @ 3 Meter Range Modulation type FM RF deviation (FM) 2.8MHz peak to peak Channel frequencies CH1: 5733MHz CH2: 5752MHz CH3: 5771MHz CH4: 5790MHz CH5: 5809MHz CH6: 5828MHz CH7: 5847MHz CH8: 5866MHz Channel selection Dip switch Frequency stability 250KHz Output flatness +0 ~+3dB Video Input level 1V peak to peak Impedance 75 ohms Pre-emphasis NTSC D.G. < 8% D.P. < 8% Audio Input level 2V peak to peak Impedance 600 ohms Frequency response 30Hz ~ 12KHz Audio carrier frequency (L) 6.0MHz 25KHz Audio carrier frequency (R) 6.0MHz 25KHz Audio distortion 3% max. THD FCC ID SU5-T5808 Technical Specification Receiver: Enclosure: NEMA-4 Weatherproof Enclosure Size: 5.5″ X 5.5 X 3.5″ with adjustable L-Bracket for up to 2″ pole mounting General Specifications Input voltage DC 12V 0.15V Current consumption <400mA Antenna type 5dBi Internal Patch Operating temperature 0 Cto 50 C Storage temperature -20 Cto 70 C Operating humidity Less than 85% Storage humidity Less than 90% Electrical Specifications RF Input frequency range 5725 ~ 5875MHz Input level -25 to -80dBm IF frequency 479.5MHz IF bandwidth 18MHz Gain flatness 3dB max Noise figure 2dB typical Input return loss 7dB typical LO.drift 250KHz LO.leakage -50dBm max Image rejection 40dB Video Output level 1V 0.15Vp-p Load Impedance 75 ohms De-emphasis NTSC D.G. < 8% D.P. < 8% Video S/N ratio 38dB min Audio Output level 1.4Vp-p Impedance 600 ohms Frequency response 30Hz ~ 12KHz
