10 Mile Range - 5.8 GHz Weatherproof Long Range Video Link
10 Mile Range - 5.8 GHz Weatherproof Long Range Video Link
System includes (1) Transmitter, (1) Receiver, (2) AC Power Supply, (2) Adjustable Pole Mount Brackets and 1-year Warranty & Life-Time Technical Support
Couldn't load pickup availability

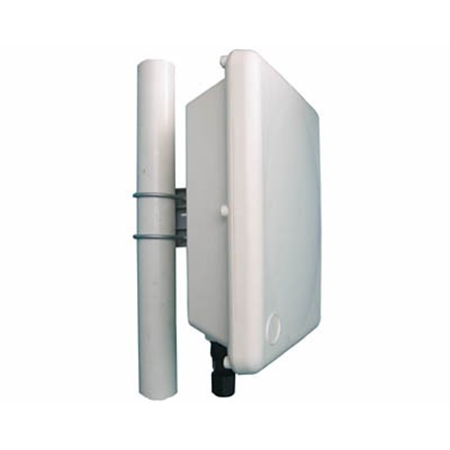

(1) Transmitter, (1) Receiver both housed in a NEMA-4 Weatherproof Enclosure with Directional Patch Antenna, Adjustable "L" Bracket for Pole Mounting up to 2" Pole, (2) 110/220VAC to 12VDC 2AMP power supplies and setup instructions. We will supply either Internal Pigtail Cables for using your own RG59 Coax and 12VDC power cables or we can supply standard 30ft. Coax/Power cable from Transmitter to Camera, 30ft. Power cable from Transmitter to power source and 30ft. Coax/Power cable from Receiver to power source and Composite Video output. All with BNC connectors, for use with most DVR's or Composite Video TV's or Monitors.
- Plug & Play for easy installation
- Each system is custom made-to-order, factory pre-set and labeled so there is No Programming required
- 10 mile Clear-Line-of-Sight Range
- Supports ONLY NTSC or PAL Composite Video
- Stereo Audio Option Available, contact us at time of order if you need audio
- Great for almost any application where running cables is too expensive or not an option
- All our equipment can be powered by 12VDC for Solar, Wind or rechargeable battery applications
- Multiple systems can be used in the same area without interference
- Systems use RG59 Coax cable, we can provide Outdoor Rated Cables or you can supply yourself
- Multiple systems may be used for Non-Line-of-Sight applications to achieve Clear-Line-of-Sight
- One-Year Warranty
- Life-Time Technical Support to the original purchasing customer
We recommend to always purchase a system that is at least twice as powerful as the distance you require. Please see our Wireless Video Basics 101 or contact us via phone or email if you need assistance. With over 30 years of experience providing Wireless Video Solutions worldwide we can assist you with the design of your project by always giving you the most cost effective solution for your project.

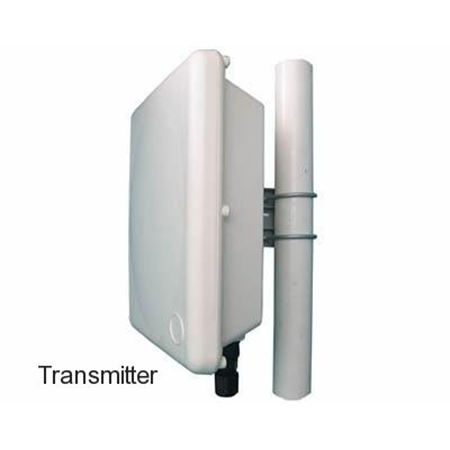

Technical Specification Transmitter:
Enclosure: NEMA-4 Weatherproof Enclosure Size: 12" X 12" X 3.5" with adjustable L-Bracket for up to 2" pole mounting| General Specifications | ||
| Input voltage | DC 12V ~ 10% | |
| Current consumption | <1500mA | |
| Antenna type | High Gain Directional | |
| Operating temperature | -40F to +170F | |
| Storage temperature | -40F to +170 F | |
| Operating humidity | Less than 85% | |
| Storage humidity | Less than 90% | |
| Electrical Specifications | ||
| RF | Output | 50mV @ 3 Meter Range |
| Modulation type | FM | |
| RF deviation (FM) | 2.8MHz peak to peak | |
| Channel frequencies | CH1: 5733MHz | |
| CH2: 5752MHz | ||
| CH3: 5771MHz | ||
| CH4: 5790MHz | ||
| CH5: 5809MHz | ||
| CH6: 5828MHz | ||
| CH7: 5847MHz | ||
| CH8: 5866MHz | ||
| Channel selection | Dip switch | |
| Frequency stability | 250KHz | |
| Output flatness | +0 ~+3dB | |
| Video | Input level | 1V peak to peak |
| Impedance | 75 ohms | |
| Pre-emphasis | NTSC | |
| D.G. | < 8% | |
| D.P. | < 8% | |
| Audio | Input level | 2V peak to peak |
| Impedance | 600 ohms | |
| Frequency response | 30Hz ~ 12KHz | |
| Audio carrier frequency (L) | 6.0MHz 25KHz | |
| Audio carrier frequency (R) | 6.0MHz 25KHz | |
| Audio distortion | 3% max. THD | |
| FCC ID | SU5-T5808 | |

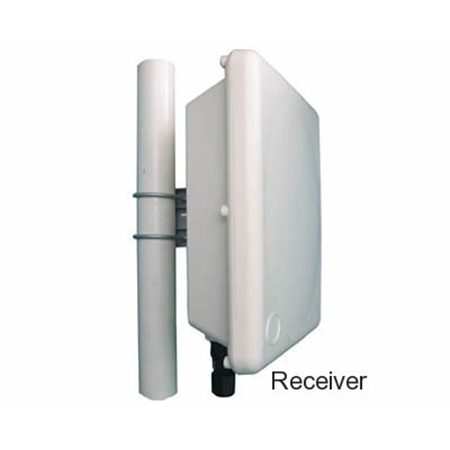

Technical Specification Receiver:
Enclosure: NEMA-4 Weatherproof Enclosure Size: 12" X 12" X 3.5" with adjustable L-Bracket for up to 2" pole mounting| General Specifications | ||
| Input voltage | DC 12V 0.15V | |
| Current consumption | <400mA | |
| Antenna type | High Gain Directional | |
| Operating temperature | 0 Cto 50 C | |
| Storage temperature | -20 Cto 70 C | |
| Operating humidity | Less than 85% | |
| Storage humidity | Less than 90% | |
| Electrical Specifications | ||
| RF | Input frequency range | 5725 ~ 5875MHz |
| Input level | -25 to -80dBm | |
| IF frequency | 479.5MHz | |
| IF bandwidth | 18MHz | |
| Gain flatness | 3dB max | |
| Noise figure | 2dB typical | |
| Input return loss | 7dB typical | |
| LO.drift | 250KHz | |
| LO.leakage | -50dBm max | |
| Image rejection | 40dB | |
| Video | Output level | 1V 0.15Vp-p Load |
| Impedance | 75 ohms | |
| De-emphasis | NTSC | |
| D.G. | < 8% | |
| D.P. | < 8% | |
| Video S/N ratio | 38dB min | |
| Audio | Output level | 1.4Vp-p |
| Impedance | 600 ohms | |
| Frequency response | 30Hz ~ 12KHz | |
