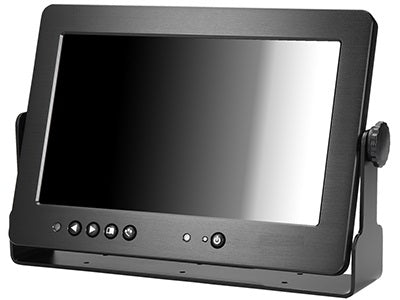

10 inch Sunlight Readable Full 1080 HD LCD Monitor with HDMI

10 inch Sunlight Readable Full 1080 HD LCD Monitor with HDMI

Regular price $799.00 USD
Regular price Sale price $799.00 USD
Sale Sold out
Shipping calculated at checkout.

10 inch Sunlight Readable Full 1080 HD LCD Monitor with HDMI, Adjustable Mounting Bracket, 12VDC

View full details



10 inch Sunlight Readable Full 1080 HD LCD Monitor with HDMI


Features
    • Sunlight Readable with Long Life LED Backlight
    • Automatic Backlight Adjustment through Built-in Ambient Light Sensor
    • 5-Wire Resistive Touchscreen
    • Anti-Reflective Coating
    • Multi-Monitor Touchscreen Support
    • HDMI Input x 1 (HDCP), VGA Input (15 pin D-SUB) x 1 & Video Input x 2
    • DVI Input through included DVI to HDMI Adaptor
    • Audio Input x 3 / Built-In Speakers
    • 1024x600 Native Resolution, 16x9 Aspect Ratio
    • Solid Capacitors for Improved Durability
    • High Performance Image and Video Signal Processor
    • AISS - Advanced Image-Scaling and Shaping
    • Last Input and Power Setting Memory
    • IR Remote Control
    • Auto Power-On upon signal detection
    • Vertical Image Flip
    • Function to Disable Front Button(s) and On Screen Text
    • AV2 Auto Switching for Backup Camera
    • 360° Copper Monitor Stand or U-Shape Mount
    • VESA 75mm Mounting Holes
    • 26-Pin Heavy-Duty Connector with Connector Locking
    • Ruggedized Aluminum Casing
    • Supports 9V DC ~ 36V DC
    • "E" Mark Certified for Automotive use
    • FCC, CE, E13 Certification
    • ROHS Compliant

Specification
  • Screen Size: Diagonal 10.1"  (16:9)
  • Physical Resolution: 1024 (H)  x 600 (V) WXGA
  • Supported Resolution: 640 x 480 ~ 1920 x 1080
  • Dot Resolution: 3072 x 600 = 1,843,200 (dots)
  • Brightness: 1000 cd/m²
  • Contrast Ratio: 600:1
  • Viewing Angle: 140° Horizontal, 120° Vertical
  • Response Time (Tr/Tf): 5/20ms (Typ.)
  • Touch Screen Interface: USB port
  • Operating Voltage Range: DC 9V ~ 36V
  • Power Supply: DC 12V
  • Power Consumption: ≤ 20W
  • Operating Temperature: -4°F ~ 158°F (-20°C ~ 70°C)
  • Storage Temperature: -22°F ~ 176°F (-30°C ~ 80°C)
  • Vibration: Operating Random Vibration Test (5-500Hz, 1.0Grms), IEC 60068-2-64 standard
  • Shock: Operating Shock Test, 10G peak acceleration (11ms duration), IEC 60068-2-27 standard
  • Dimension (mm): 265W x 186H x 33.2D
  • Weight (lb): 3.3
