3000ft. Range 5Ghz HD-SDI & HDMI Wireless Video System

3000ft. Range 5Ghz HD-SDI & HDMI Wireless Video System

SKU: WVC-HD-3000
Regular price $5,499.00 USD
Regular price Sale price $5,499.00 USD
Sale Sold out
Shipping calculated at checkout.

3000ft. Range 5Ghz HD-SDI & HDMI Wireless Video System

View full details


3000ft. Range 5Ghz HD-SDI & HDMI Wireless Video System

WVC-HD-3000

INCLUDES:

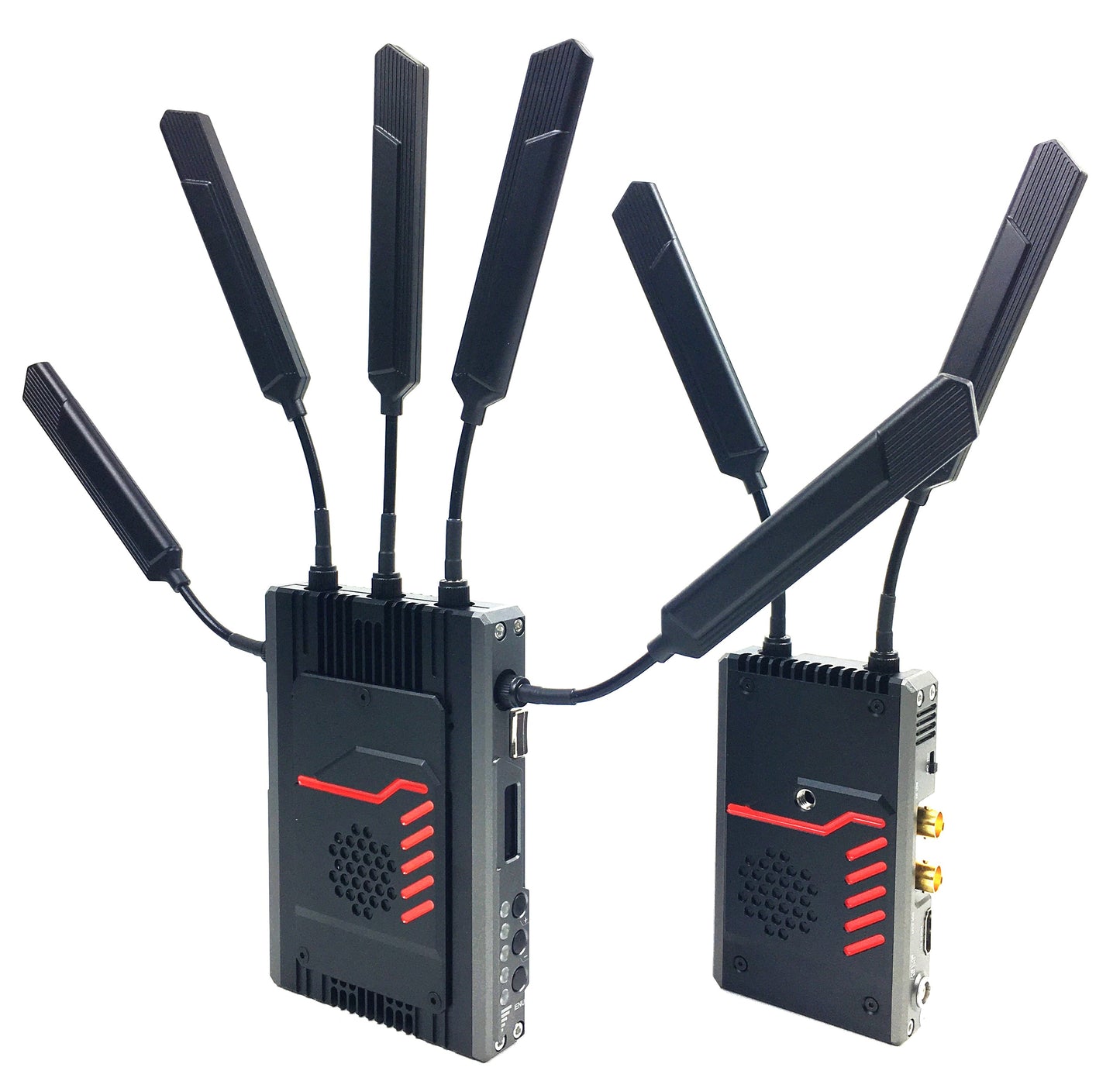

(1) Transmitter, (1) Receiver,  (7) Omni-Directional Antennas, (2) LEMO to D-Tap cables and Hard Shell Carry case.


    • Zero Latency (video delay) with Plug & Play 1080 HD Wireless Video

    • 10 Fixed Channels which are end user selectable for Rock-Solid Performance

    • Over 3000ft. Clear-Line-of-Sight Range

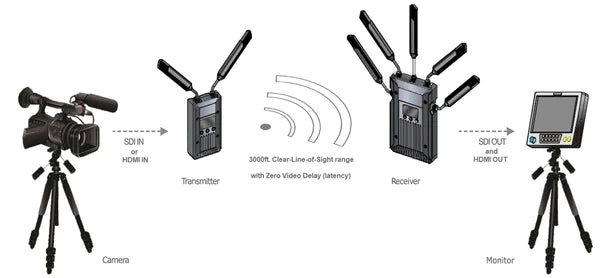

    • Transmitter provides either HD-SDI input via BNC or HDMI (via Type-A) video inputs

    • Transmitter also supplies HD-SDI Loop-Out via 2nd BNC

    • Receiver provides 2 HD-SDI video outputs via BNC & 1 HDMI (via Type-A) which can all be used at the same time

    • Sun Light Readable LDC for channel selection display

    • Push Button Channel Selection

    • Wide Voltage Range, 9VDC to 36VDC, optional AC power adapters are available

    • Multiple systems can be used in the same area without interference

    • Multiple systems may be used for Non-Line-of-Sight applications to achieve Clear-Line-of-Sight

    • Options are available for extended range & performance, call us for details

    • One-Year Warranty

    • Life-Time Technical Support to the original purchasing customer

We recommend to always purchase a system that is at least twice as powerful as the distance you require.  Please see our Wireless Video Basics 101 or contact us via phone or email if you need assistance.  With over 30 years of experience providing Wireless Video Solutions worldwide we can assist you with the design of your project by always giving you the most cost effective solution for your project.

Transmitter

Video Interface HD-SDI (BNC) & HDMI video input (can use one or the other SDI has top priority)
Antenna Connectors (2) RP-SMA female
Power Input 2-Pin LEMO (female) 9-36VDC >8watts power consumption
ON/OFF Switch Yes (located at side of case)
Size 118mm X 70mm X 19mm 4.67” X 2.75” X .75” (not including antennas)
Weight 168 grams (6 oz.) (without antennas) 213 grams (7.6 oz.) (with antennas)
Video Input Format HDMI: SD, HD 525i, 625i, 720p, 1080i, 1080p; via HDMI Type A SDI: 3G, HD & SD-SDI (auto selected), SMPTE-259/274/292/296/ 372/424/425; via BNC
Video Output Format Loop Out
Audio Input Format SDI embedded 4-channel 24bit/48Khz
Audio Output Format N/A
Frequency Range 5.1Ghz to 5.9Ghz
Channel Selection Push Button with Sunlight readable LCD to view Channel Setting
Modulation OFDM   16QAM
Transmission Power 23dBm (maximum)
Receiver Sensitivity N/A
Bandwidth 40Mhz
Transmission Range over 3000ft. Clear-Line-of-Sight Range (tested with TX & RX at 5ft. elevation with standard antennas)Over 2.5 Miles Clear-Line-of-Sight with High Gain Panel Antenna for RX and Add-On Module for TX
LED Indicators Green (power) Yellow (video)
Brass Threaded Insert #20  ¼” front, rear and base of case
Temperature Range -20C to +60C (operating) -25C to +65C (storage)
Compliance Certifications FCC & CE
Receiver
Video Interface HD-SDI (BNC) & HDMI video input (can use both at the same time)
Antenna Connectors (5) RP-SMA female
Power Input 2-Pin LEMO (female) 9-36VDC >9watts power consumption
ON/OFF Switch Yes (located at side of case)
Size 141mm X 98mm X 19mm 5.5” X 3.85” X .75” (not including antennas)
Weight 423 grams (15.1 oz.) (without antennas) 499 grams (17.8 oz.) (with antennas)
Video Input Format N/A
Video Output Format HDMI: SD, HD 525i, 625i, 720p, 1080i, 1080p; via HDMI Type A SDI: 3G, HD & SD-SDI (auto selected), SMPTE-259/274/292/296/372/424/425; via BNC
Audio Input Format N/A
Audio Output Format SDI embedded 4-channel 24bit/48Khz
Frequency Range 5.1Ghz to 5.9Ghz
Channel Selection Push Button with Sunlight readable LCD to view Channel Setting
Modulation OFDM   16QAM
Transmission Power N/A
Receiver Sensitivity -75dBm
Bandwidth 40Mhz
Transmission Range over 3000ft. Clear-Line-of-Sight Range (tested with TX & RX at 5ft. elevation with standard antennas)Over 2.5 Miles Clear-Line-of-Sight with High Gain Panel Antenna for RX and Add-On Module for TX
LED Indicators Green (power),  5 Green (wireless RSSI) Yellow (video)
Brass Threaded Insert #20 ¼” front & rear of case
Temperature Range -20C to +60C (operating) -25C to +65C (storage)
Compliance FCC & CE
